Metric Female Thread Forged Hydraulic Banjo Fittings ( 20511 )
Product DescriptionProduct name :Hydraulic Hose Fittings /Metric Fittings / Hydraulic Hose Assembly 205111.Raw Material:Carbon Steel & Stainless Steel available2.Standard Plating:Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow3.Salt Spray Test:> 72 Hours ( If customer have h......
Send Inquiry
Product Description
Product Description
Product name :Hydraulic Hose Fittings /Metric Fittings / Hydraulic Hose Assembly 20511
1.Raw Material:Carbon Steel & Stainless Steel available
2.Standard Plating:Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3.Salt Spray Test:> 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4.Packing:Products are protected with the plastic caps and then packed in carbon box.
5.OEM Service:Available.Customer only need to provide the product drawing or samples.
6.Sample:Free sample.

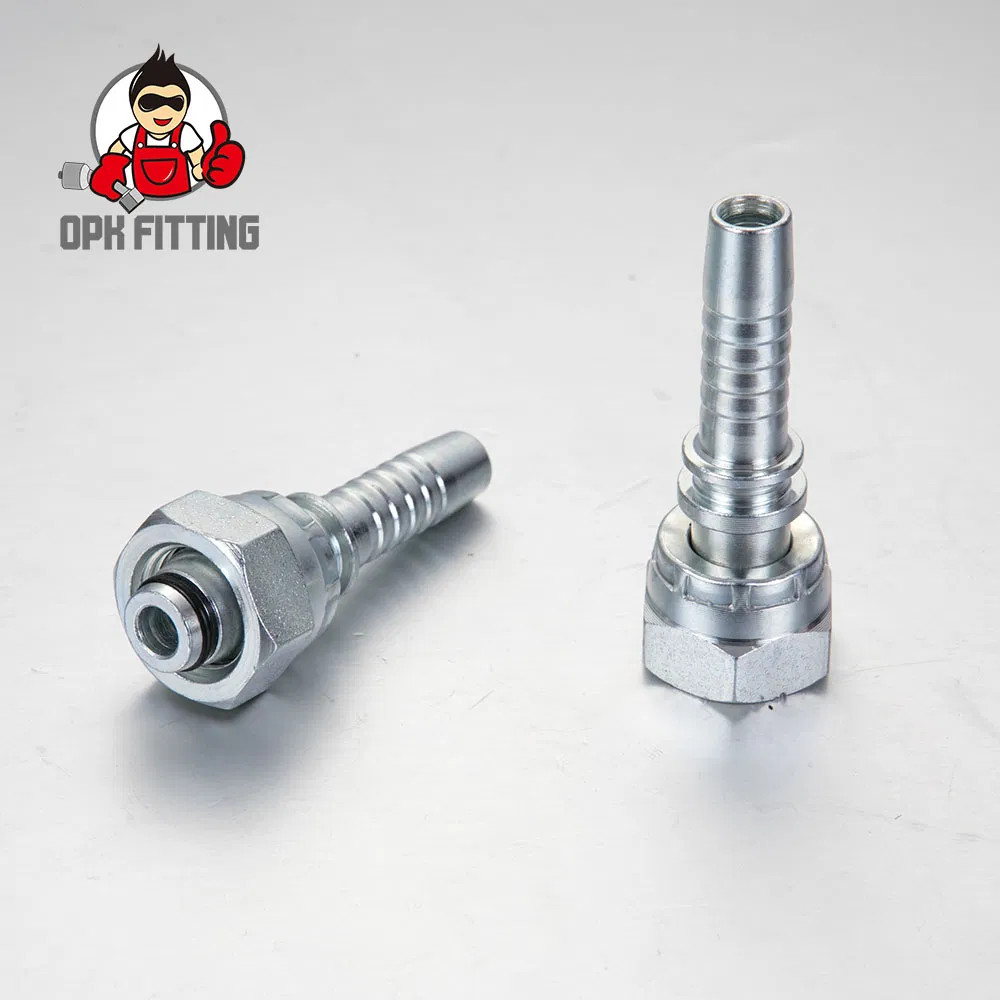

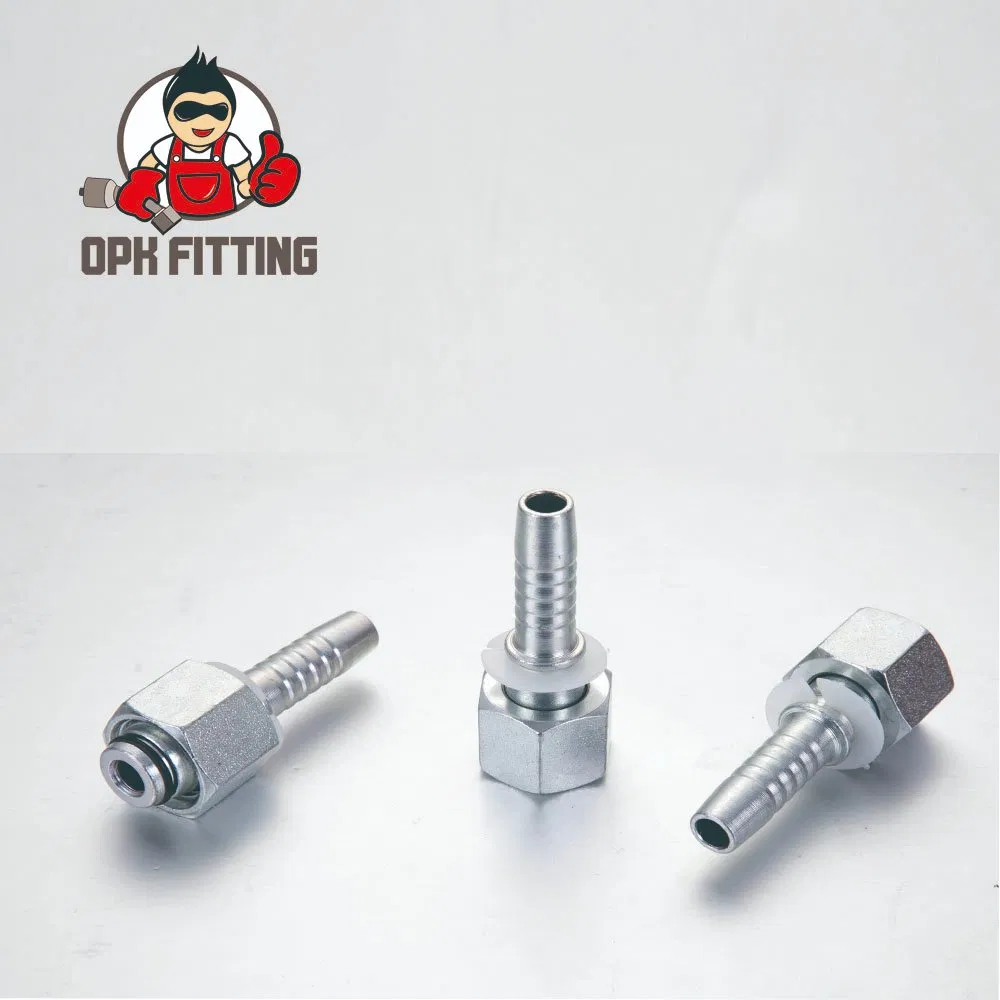

Product show:
Manufacture intruduction:
NINGBO OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes,adaptors production experience. Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hose fitting, adaptor etc. They have been respectively applied in the hydraulic and fluid conveyance system of the industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food and so forth.

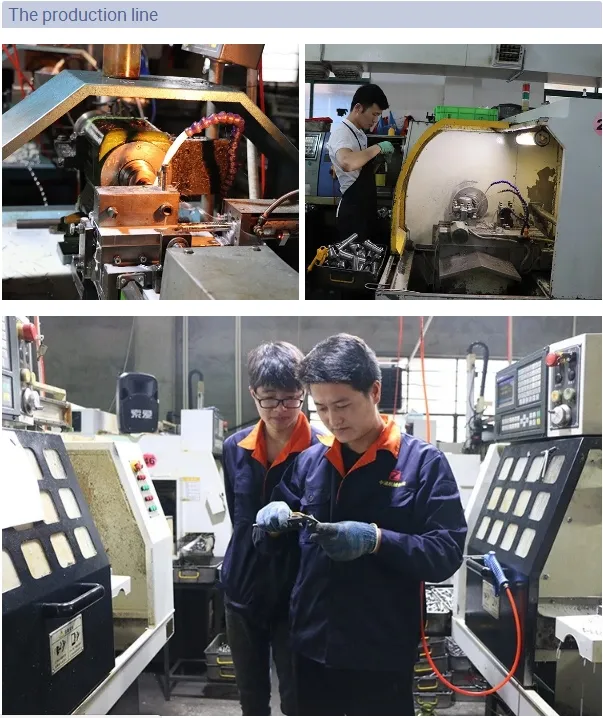

The factory owns a group of high quality and high-tech professional designers and personnel group. It possesses a series of the fully automatic computer NC machine tools and high precision lathes, the multiple spindle tool machines, hexangular tool machines and electric heated bent pipe machines. We have strictly adopted the professional personnels to carry on the tests and examinations for our products, in order to provide a assurance in the high-quality for all the customers.
Our factory aims are strict management style, high-quality, honestly and faithly style, sincerely services. It implements the pipe-cutting, rubber-stripping, hose crimping, trail-pressure, rinsing in aspect of the manufacture technology. Our products have the features of the consummate structure, advanced design. Theelbow joint adopts the integral production craft and technology and chooses the advanced high frequency heater and fully automatic computer pipe bender for the processing. It conforms with the requirements of pleasing appearance, fine pragmatism and low price. And our products exported to some MID-eastern nations and some European countries such as USA, Greece, British, etc. The factory is located on Hengxi industrial estate, Yinzhou, Ningbo, China. There is the cradleland of hydraulic pipes and has transport facilities, enough supply of goods. All staff members of this factory warmly welcome broad old and new consumers in all walks of life come to visit us and negotiate business with us. We are willing to wholeheartedly serve you by the superior products and preferential price. We wish we can sincerely cooperate with each other for the purpose of jointly creating afine future.
Shipping & Service:
1. Orders will be dispatched in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be offered you once the consignment is shipped.
4. Professional customer service to answer your questions or fix problems regarding your order.
Certificate: Our factory is strictly conducted by ISO9001: 2008
Quality assureance: Raw material incoming inspection, first article samples, PPAP, process inspection, final inspection.
Product name :Hydraulic Hose Fittings /Metric Fittings / Hydraulic Hose Assembly 20511
1.Raw Material:Carbon Steel & Stainless Steel available
2.Standard Plating:Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3.Salt Spray Test:> 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4.Packing:Products are protected with the plastic caps and then packed in carbon box.
5.OEM Service:Available.Customer only need to provide the product drawing or samples.
6.Sample:Free sample.

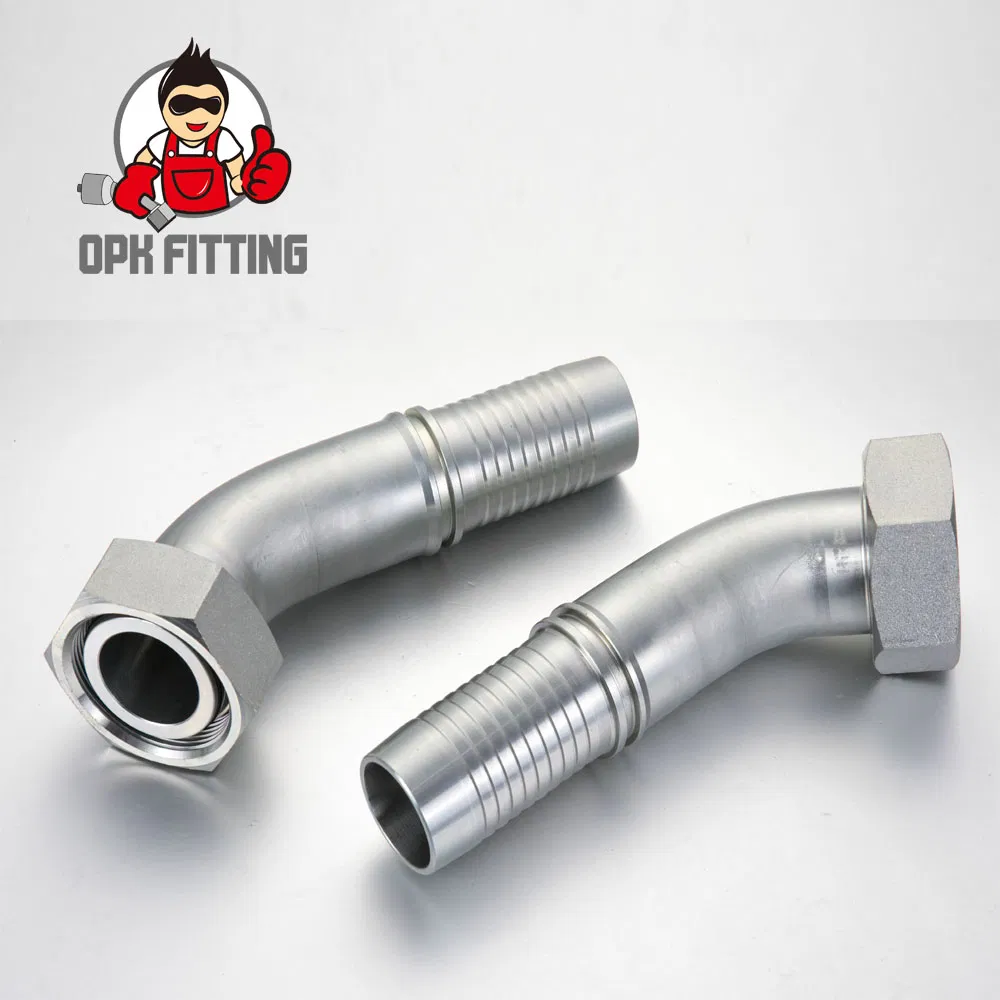

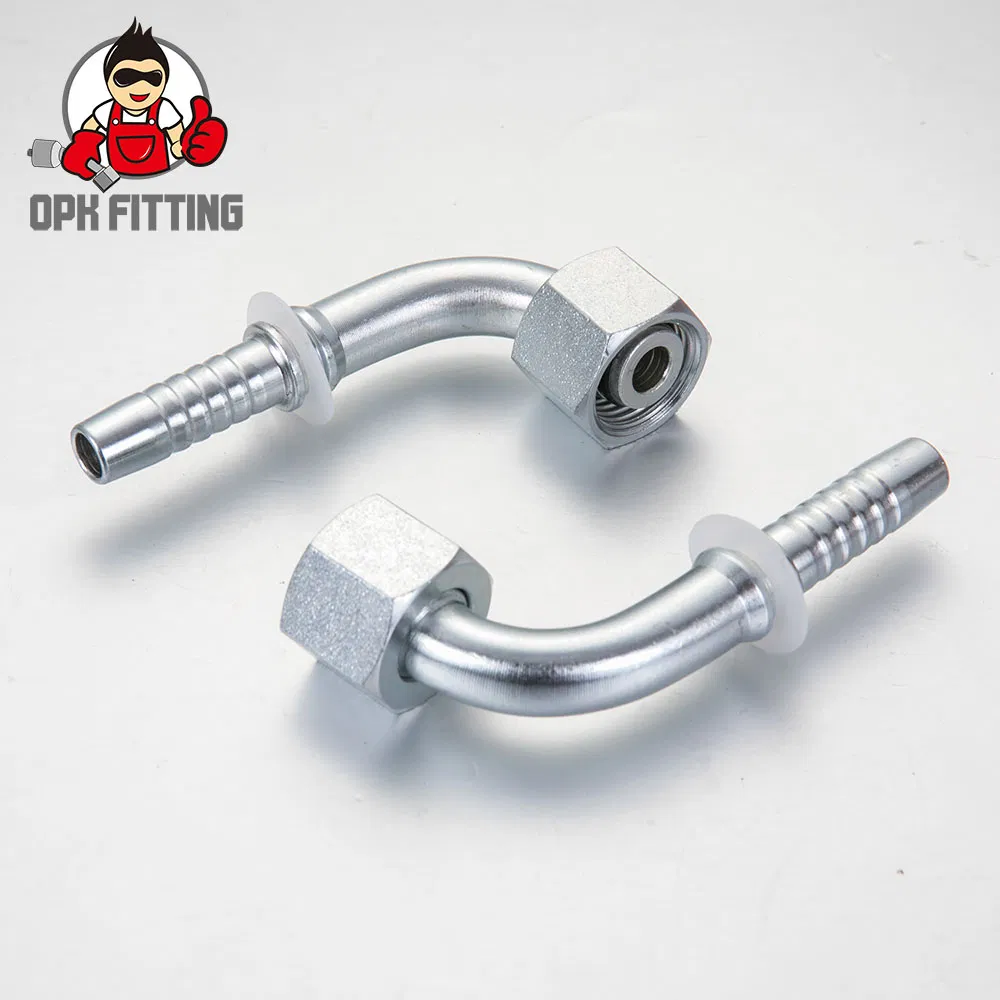

Product show:
| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20511-14-04 | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 28.5 | 1.1 | 19 |
| 20511-16-04T | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-18-04T | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 26.5 | 2 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 29 | 2 | 24 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 28.5 | 2.5 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 31.5 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 28.5 | 2.5 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 31.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 28.5 | 2.5 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30X2 | 10 | 10 | 20 | O16.3X2.4 | 36 | 3 | 36 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 39 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-36-16 | M36X2 | 25 | 16 | 25 | O20.3X2.4 | 40.5 | 3 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 40 | 5 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 5 | 50 |
| 20511-42-20W | M42X2 | 32 | 20 | 30 | O25.3X2.4 | 46 | 5 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
| Metric Female 24°Cone O-ring H.T.IS121515-1-DIN3865 | ||||||||
PART NO. | T | HOSE BORE | DIMENSIONS | |||||
| THREAD T | DN | DASH | TUBE O.D | L | S1 | |||
| 20511-16-04TY | M16×1.5 | 6 | 04 | 8 | 24 | 19 | ||
| 20511-18-04TY | M18X1.5 | 6 | 04 | 10 | 25 | 22 | ||
| 20511-18-05TY | M18X1.5 | 8 | 05 | 10 | 25 | 22 | ||
| 20511-18-06TY | M18×1.5 | 10 | 06 | 10 | 25 | 22 | ||
| 20511-20-05TY | M20X1.5 | 8 | 05 | 12 | 25.5 | 24 | ||
| 20511-20-06TY | M20×1.5 | 10 | 06 | 12 | 25.5 | 24 | ||
| 20511-22-06TY | M22×1.5 | 10 | 06 | 14 | 25.5 | 27 | ||
| 20511-24-08TY | M24×1.5 | 13 | 08 | 16 | 30 | 30 | ||
| 20511-30-10TY | M30×2 | 16 | 10 | 20 | 34 | 36 | ||
| 20511-30-12TY | M30×2 | 19 | 12 | 20 | 35 | 36 | ||
| 20511-36-12TY | M36×2 | 19 | 12 | 25 | 32 | 46 | ||
| 20511-36-16TY | M36×2 | 25 | 16 | 25 | 35.5 | 46 | ||
| 20511-42-16TY | M42×2 | 25 | 16 | 30 | 36 | 50 | ||
| 20511-52-20TY | M52×2 | 32 | 20 | 38 | 36 | 60 | ||
Note:1.For use with braided hoses. | ||||||||
Manufacture intruduction:
NINGBO OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes,adaptors production experience. Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hose fitting, adaptor etc. They have been respectively applied in the hydraulic and fluid conveyance system of the industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food and so forth.
The factory owns a group of high quality and high-tech professional designers and personnel group. It possesses a series of the fully automatic computer NC machine tools and high precision lathes, the multiple spindle tool machines, hexangular tool machines and electric heated bent pipe machines. We have strictly adopted the professional personnels to carry on the tests and examinations for our products, in order to provide a assurance in the high-quality for all the customers.
Our factory aims are strict management style, high-quality, honestly and faithly style, sincerely services. It implements the pipe-cutting, rubber-stripping, hose crimping, trail-pressure, rinsing in aspect of the manufacture technology. Our products have the features of the consummate structure, advanced design. Theelbow joint adopts the integral production craft and technology and chooses the advanced high frequency heater and fully automatic computer pipe bender for the processing. It conforms with the requirements of pleasing appearance, fine pragmatism and low price. And our products exported to some MID-eastern nations and some European countries such as USA, Greece, British, etc. The factory is located on Hengxi industrial estate, Yinzhou, Ningbo, China. There is the cradleland of hydraulic pipes and has transport facilities, enough supply of goods. All staff members of this factory warmly welcome broad old and new consumers in all walks of life come to visit us and negotiate business with us. We are willing to wholeheartedly serve you by the superior products and preferential price. We wish we can sincerely cooperate with each other for the purpose of jointly creating afine future.
Shipping & Service:
1. Orders will be dispatched in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be offered you once the consignment is shipped.
4. Professional customer service to answer your questions or fix problems regarding your order.
Certificate: Our factory is strictly conducted by ISO9001: 2008
Quality assureance: Raw material incoming inspection, first article samples, PPAP, process inspection, final inspection.
