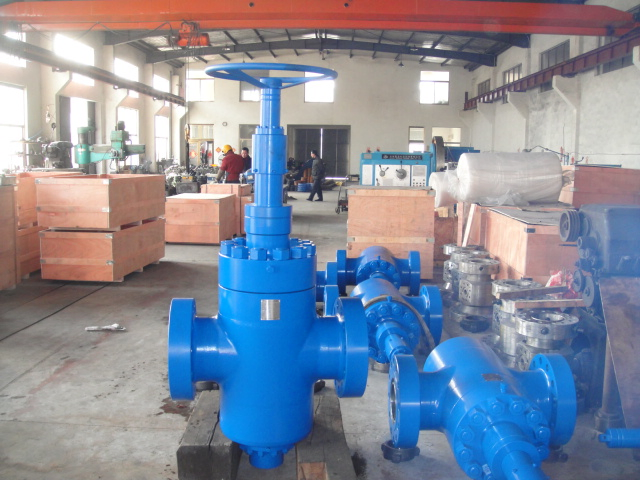

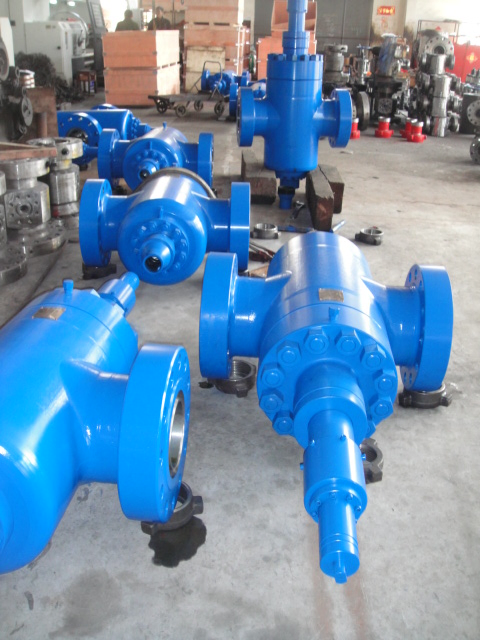

API 6A E-L600 Type Ball Screw Gate Valve
With temperature rating for API Spec 6A in L, P, R, S, T, U type, - available for temperatures up to 350 ° C or 650 ° C.Pressure classes 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi. Material level API 6A AA~HH, product specification level PSL1~3G, performance level PR1~2.......
Send Inquiry
Product Description
With temperature rating for API Spec 6A in L, P, R, S, T, U type, - available for temperatures up to 350 ° C or 650 ° C.
Pressure classes 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi. Material level API 6A AA~HH, product specification level PSL1~3G, performance level PR1~2.
FEATURES
1) Simple structure, easily removable gate and seat assembly.
2) Bi-directional use, long service life.
3) Thrust bearing for minimum torque.
4) Packing injection fitting for seal integrity.
5) Gate and seat with hard facing for maximum wear and corrosion resistance.
6) Forged body construction
7) Can be fitted with expanding or slab gates.
8) Available as manual or actuated versions.
Being an OEM manufacturer, these valves and their parts are compatible with the leading brands.
The valve switch transmission adopts the ball screw structure, effectively reduce the operating torque and achieve common valve 1/3. Gate valve structure Valve with tail stem which has pressure balance and switch indicator It is supply for big diameter high-pressure valve structure.
Working pressure :2000PSI--20000PSI
nominal bore : 1.13/16 --9(46mm--230mm)
working medium : oil , nature gas , mud , consist of H2S CO2gas .
working temp:-46°--121°C (LU class )
material :AABBCCDDEEFFHH
PSL:PSL1--4
PR:PR1--2
Pressure classes 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi. Material level API 6A AA~HH, product specification level PSL1~3G, performance level PR1~2.
FEATURES
1) Simple structure, easily removable gate and seat assembly.
2) Bi-directional use, long service life.
3) Thrust bearing for minimum torque.
4) Packing injection fitting for seal integrity.
5) Gate and seat with hard facing for maximum wear and corrosion resistance.
6) Forged body construction
7) Can be fitted with expanding or slab gates.
8) Available as manual or actuated versions.
Being an OEM manufacturer, these valves and their parts are compatible with the leading brands.
The valve switch transmission adopts the ball screw structure, effectively reduce the operating torque and achieve common valve 1/3. Gate valve structure Valve with tail stem which has pressure balance and switch indicator It is supply for big diameter high-pressure valve structure.
Working pressure :2000PSI--20000PSI
nominal bore : 1.13/16 --9(46mm--230mm)
working medium : oil , nature gas , mud , consist of H2S CO2gas .
working temp:-46°--121°C (LU class )
material :AABBCCDDEEFFHH
PSL:PSL1--4
PR:PR1--2
