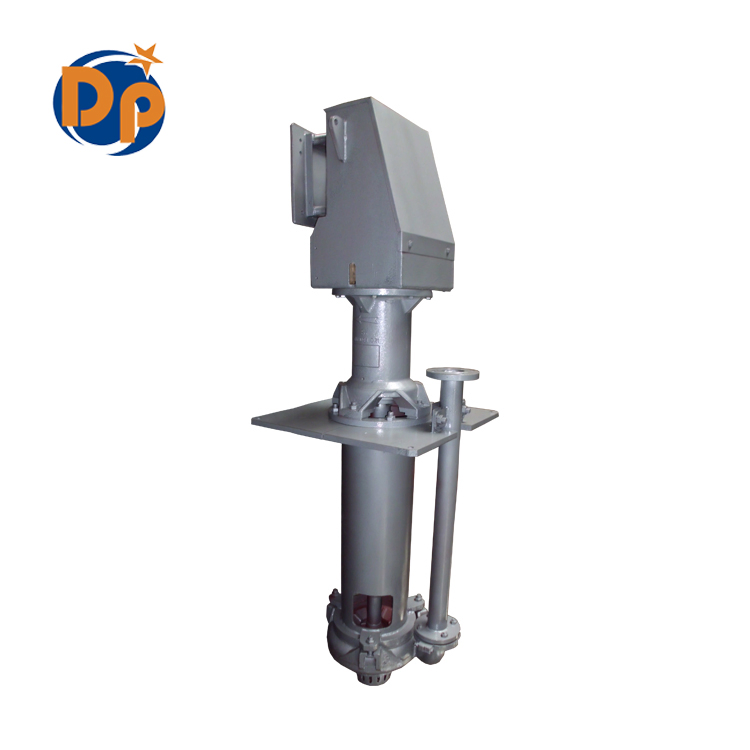

Vertical Centrifugal Slurry Pump Mud Pump for Gold Mining
Vertical Rubber Slurry Sump Pump,Submersible Slurry Pump,Centrifugal Pump,Mining PumpThe Depump vertical sump pump excellence is embodied in the range of vertical Sump Pumps. Use a variety of speed and various modifications way, makes the pump in the best condition operation, long service life, high......
Send Inquiry
Product Description

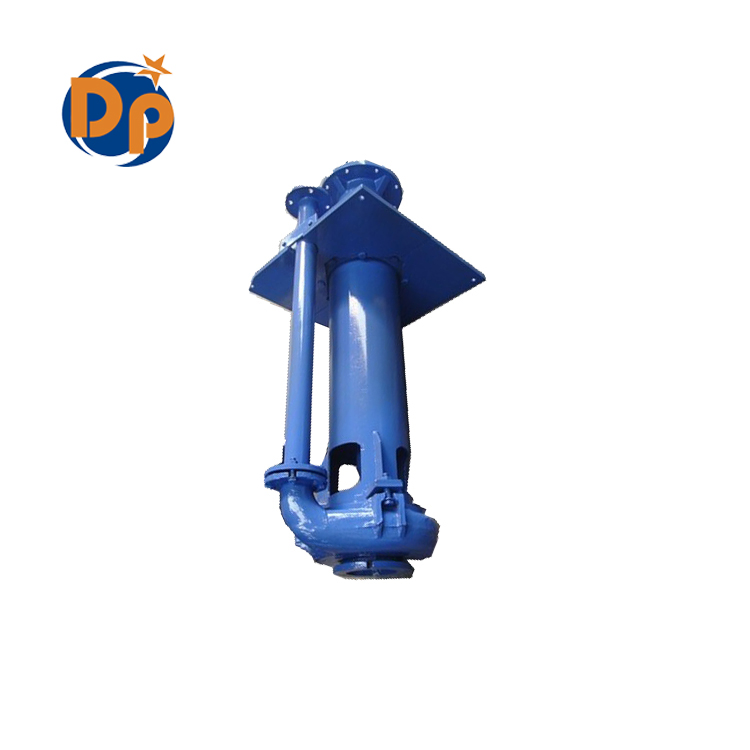

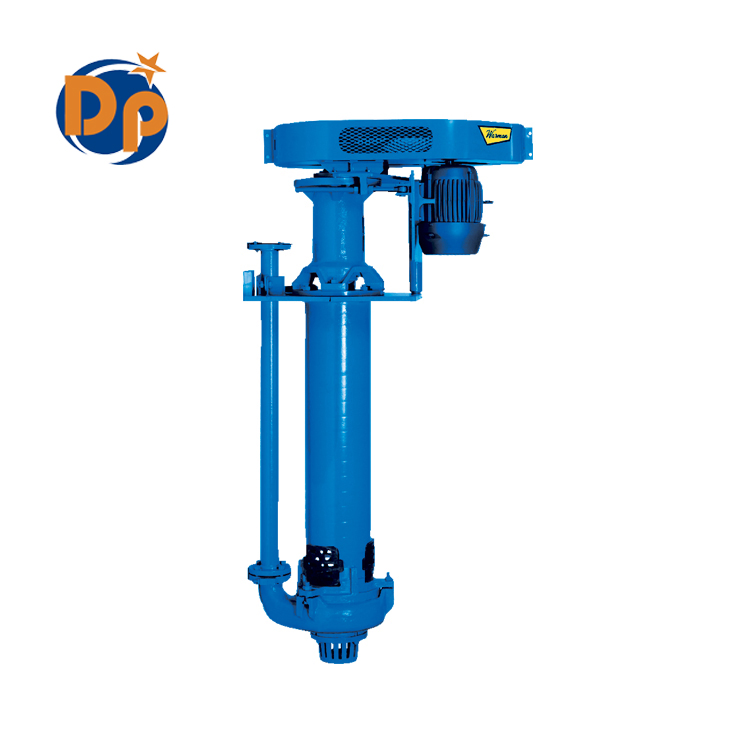

Vertical Rubber Slurry Sump Pump,Submersible Slurry Pump,Centrifugal Pump,Mining Pump
The Depump vertical sump pump excellence is embodied in the range of vertical Sump Pumps. Use a variety of speed and various modifications way, makes the pump in the best condition operation, long service life, high operating efficiency and can meet many kinds of poor transport conditions. It's widely used in the metallurgy, mining, coal, power, building materials, environmental protection and other departments.
Features

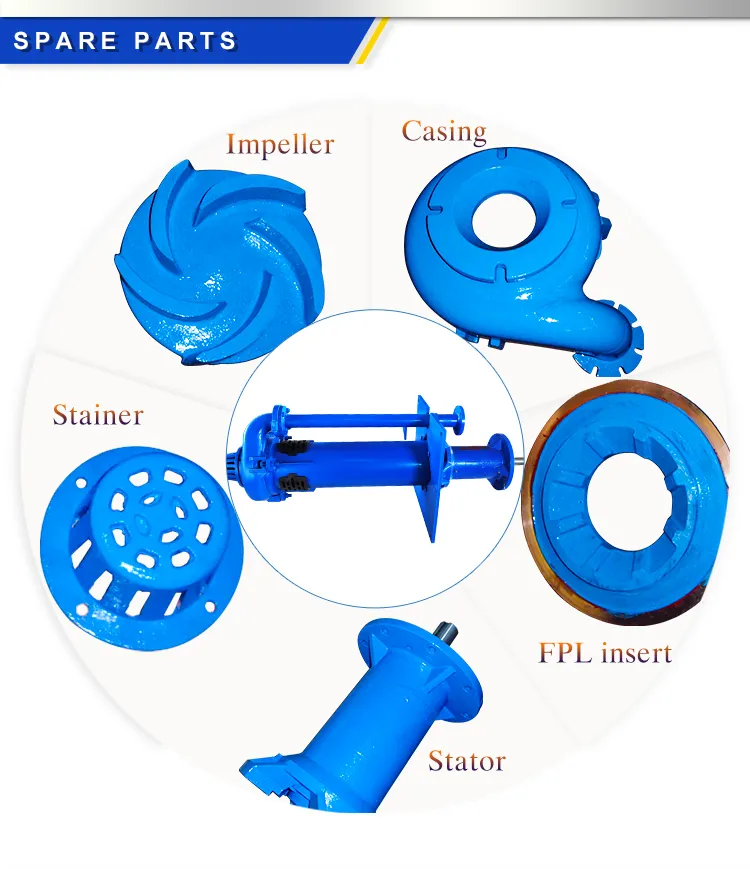

- Flow passage components: this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
- Bearing components: we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
- Sealing: Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.

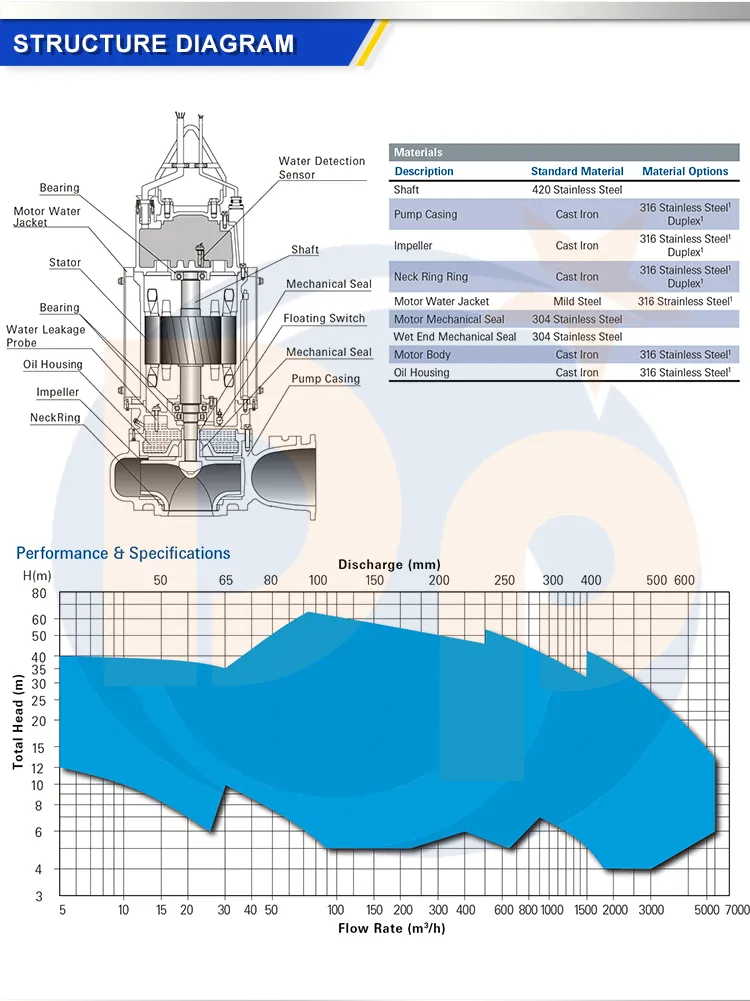

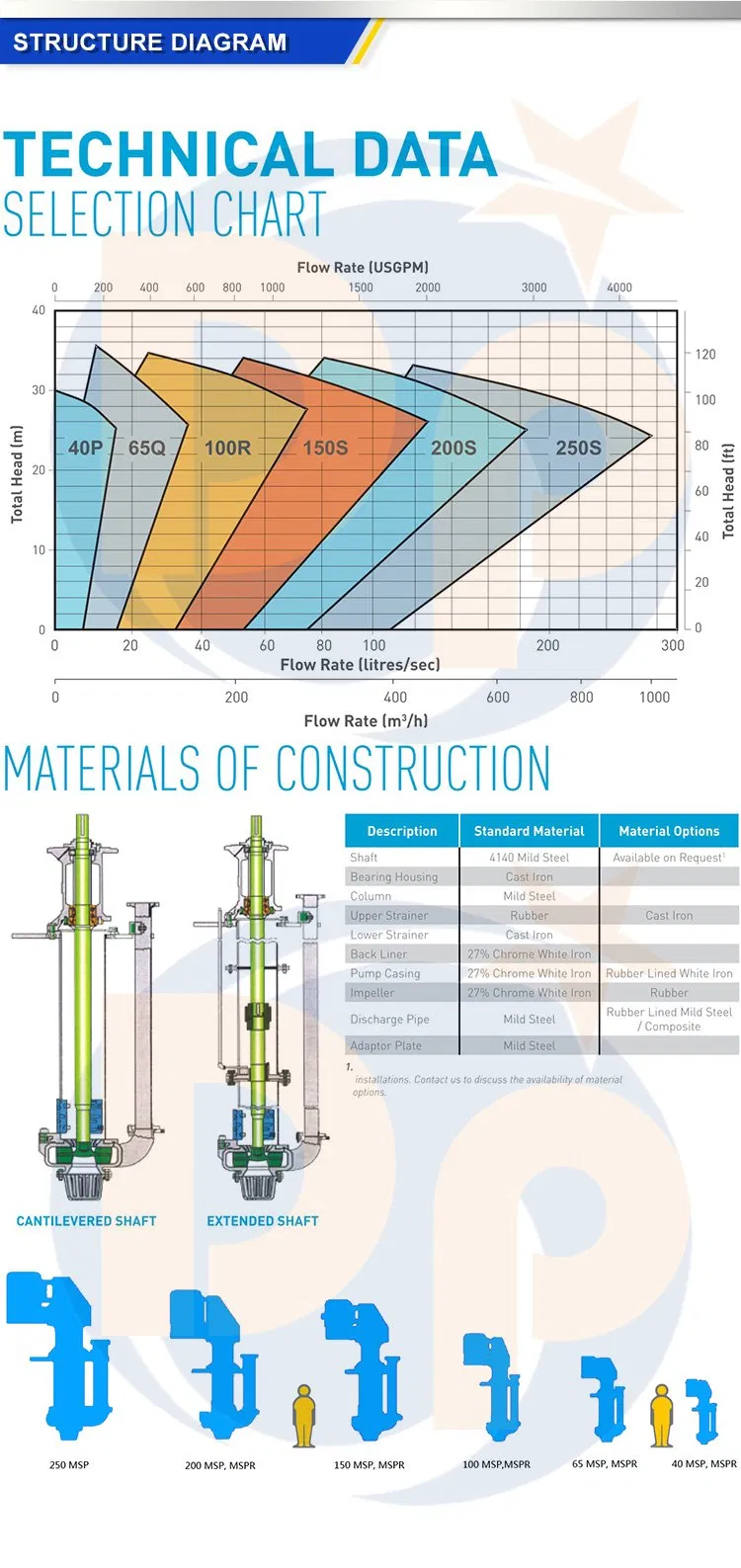

Performance Curve
Performance Table
| Model | Max. Power (kw) | Material | Flow(L/S) | Head(m) | Speed(r/min) | Max. efficiency | No. of Vanes | Impeller Diameter (mm) | Weight(kg) |
| MSP | |||||||||
| 40PV | 15 | Cr27 | 5-12 | 4-28 | 1000-2200 | 40 | 5 | 188 | 285 |
| 65QV | 30 | 6-24 | 5-31 | 700-1500 | 58 | 5 | 280 | 430 | |
| 100RV | 75 | 15-80 | 5-35 | 500-1200 | 56 | 5 | 370 | 860 | |
| 150SV | 110 | 30-130 | 8-40 | 500-1000 | 52 | 5 | 450 | 1700 | |
| MSPR | |||||||||
| 40PV | 15 | Rubber | 5-11 | 4-26 | 1000-2200 | 40 | 5 | 188 | 280 |
| 65QV | 30 | 6-29 | 5-30 | 700-1500 | 51 | 5 | 280 | 420 | |
| 100RV | 75 | 18-80 | 5-35 | 600-1200 | 62 | 5 | 370 | 840 | |
| 150SV | 110 | 30-130 | 8-40 | 500-1000 | 52 | 5 | 450 | 1700 | |
*****More pump models please contact us*****
Our Advantages
- Factory direct price
- Professional knowledge and attentive service
- Strict quality inspection and timely delivery
- Highly value every order, no matter how small it is.
- offer confidentiality agreement "business secret contract"
- Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
FAQ
A: What kind of company you are?
Q: Shijiazhuang Depon Pump Company is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We have passed CE, SGS certificate. Our customers are at home and abroad. Hope to coorperate with the worldwide friends.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 7-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
Q: What information should I offer to get pump solution?
1, Head: m
2, Flow: m3/h
3, Max Solid size: mm
4, Particle shape (smooth or sharp):
5, Medium pH level:
6,Specific Gravity of the Medium:
7, Temperature:
8, Drive type:
9. Power supply: Electric or Dlesel
10, Voltage and Frequency of the Motor:
