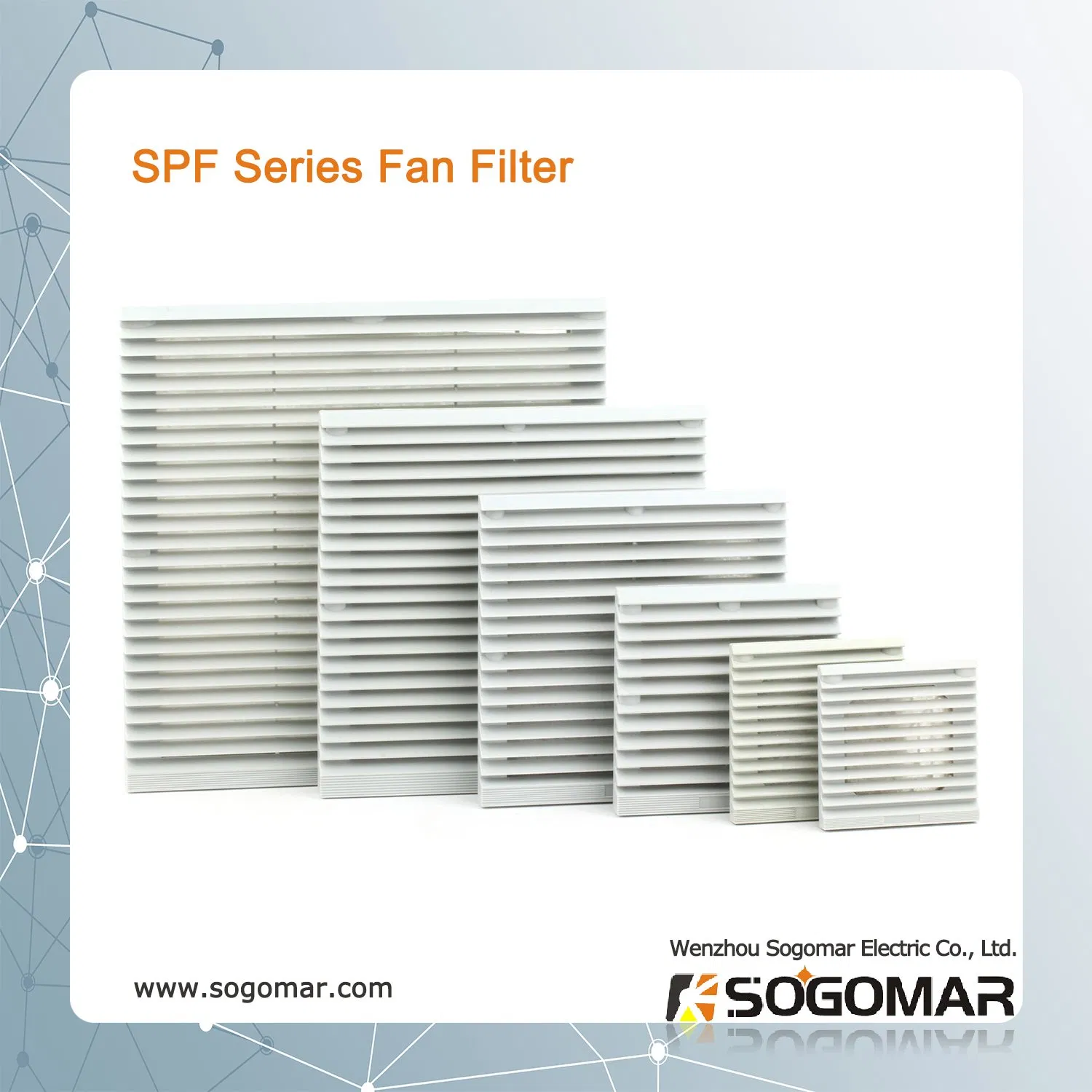

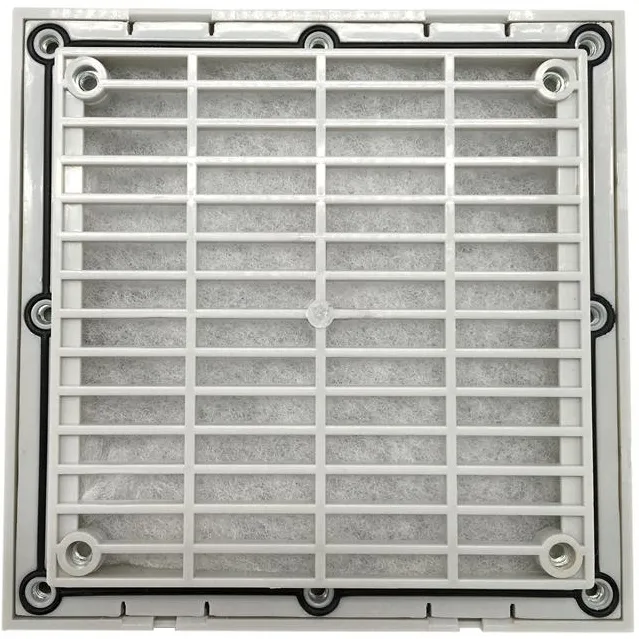

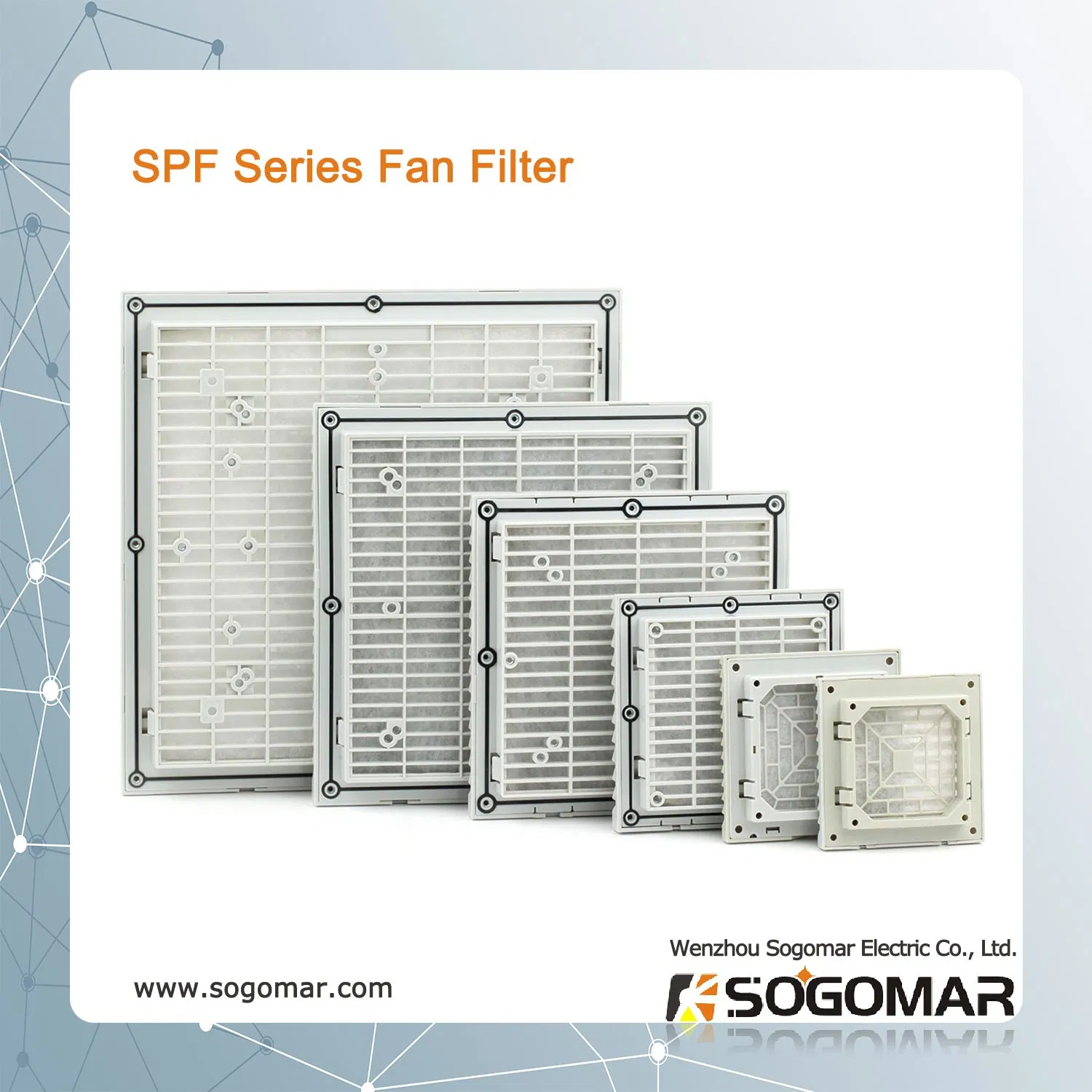

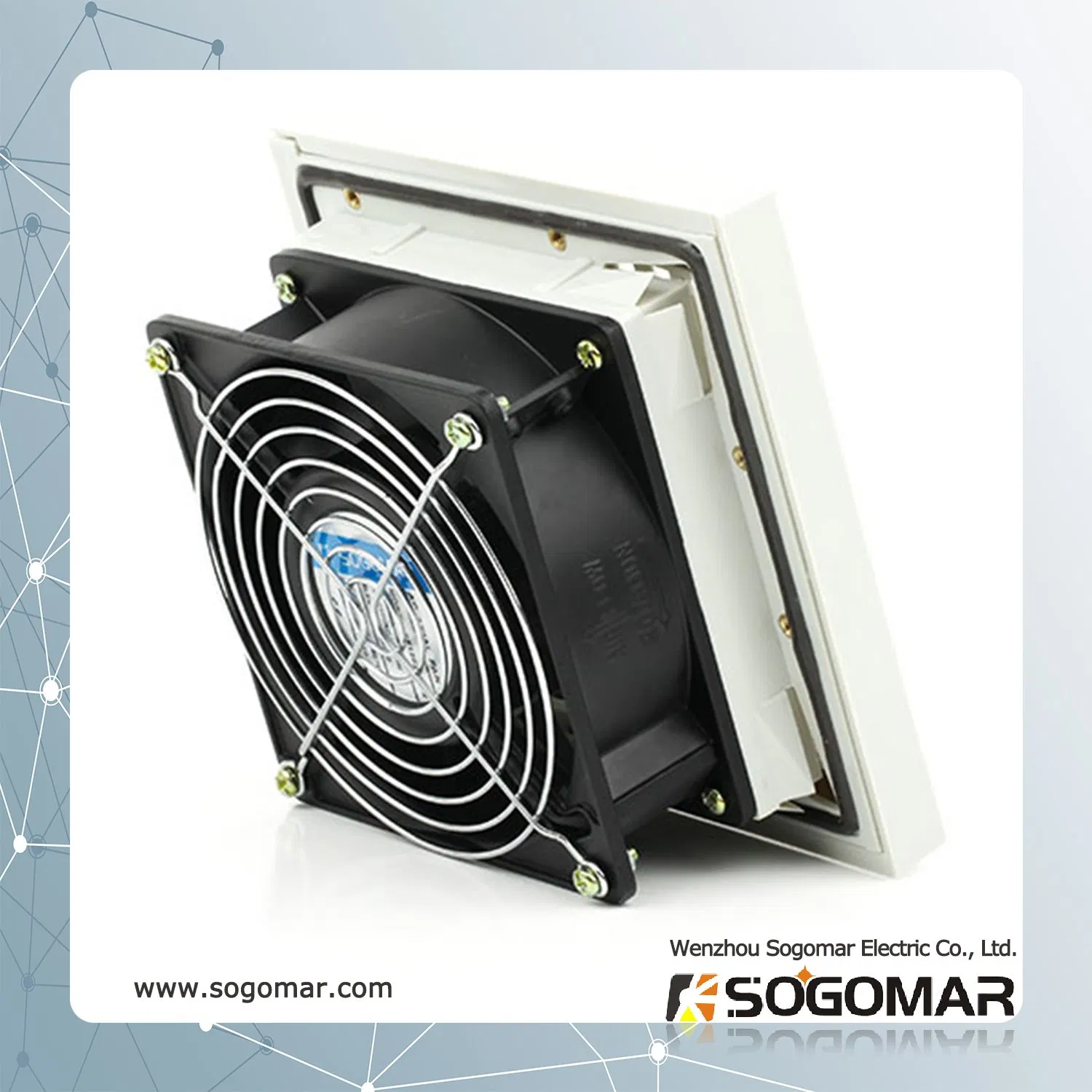

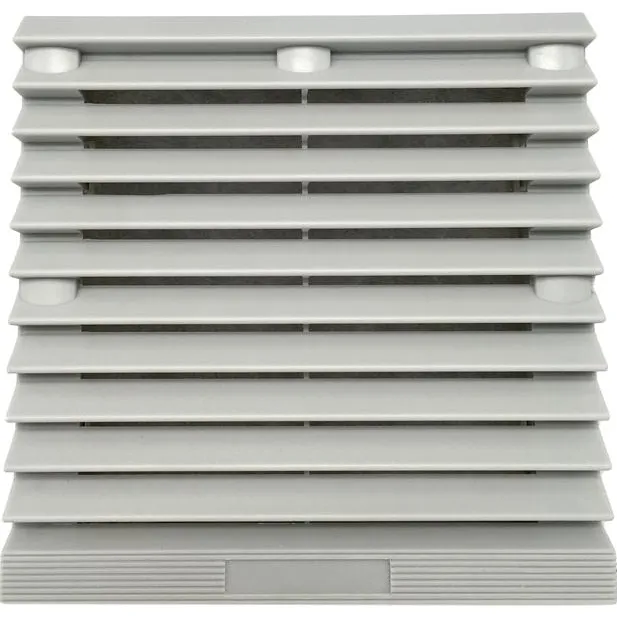

Fan Part Plastic Filter SPF9804 9805 for 4/6/8 Inch Fan Motor
Information1. Material of net body: ABS resin of flamer resistance2. Filter screen material: polyester fiber synthetic resin3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ4. Max wind speed: 2.0m/sec5. Operation temperature range: -10ºC to +55ºC indoors6. Effect......
Send Inquiry
Product Description
Information
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber synthetic resin
3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC indoors
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%
8. Protecing grade: IP44

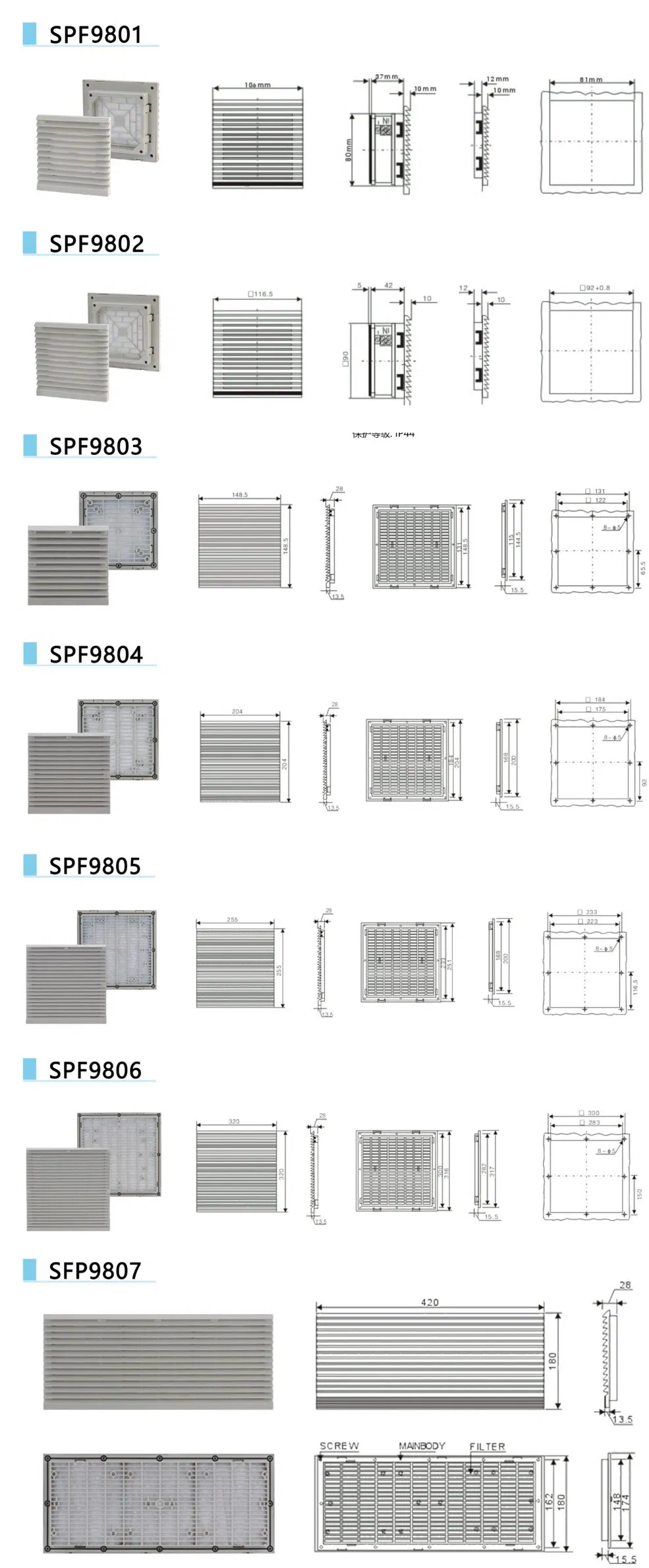

Type | Dimension(mm) | Application Fan size(mm) |
SPF9801 | 106X106 | 80X80MM |
SPF9802 | 116.5X116.5 | 92X92MM |
SPF9803 | 148.5X148.5 | 120X120MM |
SPF9804 | 204X204 | 120X120, 150X150, 150X172, 172X172MM |
SPF9805 | 255X255 | 150X172, 172X172, 180X180, 200X200MM |
SPF9806 | 320X320 | 200X200, 220X220, 225X225, 230X230, 280X280MM |
