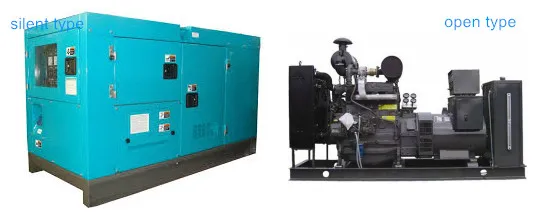

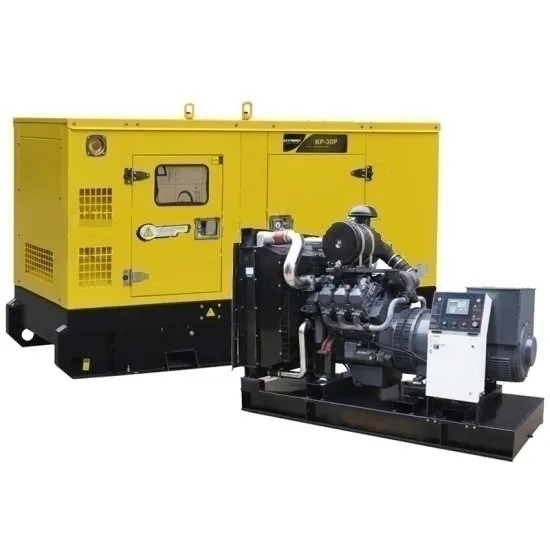

250kw Popular Genset Open /Silent Type Powered by Weichai Deutz
Products DetailsDeutz is one of world top famous engines from Germany and widely acceptable all over the world.Sutech Power Deutz gensets areranging from 200kva up to 600kva.Deutz Generator Sets are vastly used in transportation sector, buildings, telecom, schools, hospitals, ships, petrolube oil fi......
Send Inquiry
Product Description
Products Details
Deutz is one of world top famous engines from Germany and widely acceptable all over the world.Sutech Power Deutz gensets are
ranging from 200kva up to 600kva.
Deutz Generator Sets are vastly used in transportation sector, buildings, telecom, schools, hospitals, ships, petrolube oil fields and
industrial power supplying area etc. With Deutz generating set reliability, durability, flexibility, energy-saving, environment protection and
wonderful World wide after-service networks, Deutz Generator Set act as a fundamental role in global gensets industry.
(Tags: Deutz Generator Set, Deutz Generator)
Till Now,Deutz have three main factories in China,which are ShijiaZhuang(Huachai Deutz),Dalian(FAW Dalian Deutz) and
Beijing(Beinei Deutz),Huachai Deutz produce most of water cooled Deutz engiens,Beinei and FAW Dalian Deutz produce Aircooled
Deutz engines.From 2013,Most of Deutz engines changed the model,we will update as soon as possible.

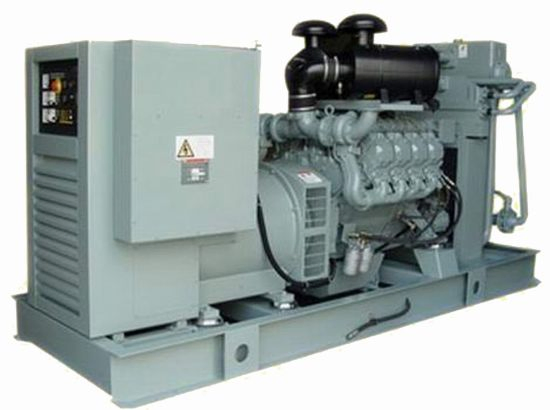

250kw/310kva Diesel generator with Deutz power engine
SPECIFICATION OF Deutz SERIES
| Type | OutputPower | Engine model | Bore*Stroke(mm) | Cylinders | Dimension(L*W*H) | Weight | |
| Kw | kva | (mm) | ( Kg) | ||||
| Water-cooled DEUTZ Diesel Generator sets | |||||||
| ST20E | 16 | 20 | D226B-3D | 105x120 | 3 | 1750x800x1350 | 780 |
| ST30E | 24 | 30 | D226B-3D | 105x120 | 3 | 1750x800x1350 | 780 |
| ST40E | 32 | 40 | TD226B-3D | 105x120 | 3 | 1850x800x1350 | 810 |
| ST50E | 40 | 50 | TD226B-3D | 105x120 | 3 | 1850x800x1350 | 810 |
| ST65E | 50 | 62.5 | TD226B-4D | 105x120 | 4 | 2050x800x1350 | 950 |
| ST100E | 80 | 100 | TD226B-6D | 105x120 | 6 | 2350x940x1400 | 1210 |
| ST130E | 104 | 130 | TBD226B-6D | 105x120 | 6 | 2550x940x1400 | 1350 |
| ST150E | 120 | 150 | TBD226B-6D5 | 105x120 | 6 | 2550x940x1400 | 1450 |
| ST275E | 200 | 250 | BF6M1015 | 132x145 | 6 | 3000x980x1530 | 2300 |
| ST303E | 220 | 275 | BF6M1015C | 132x145 | 6 | 3100x980x1530 | 2300 |
| ST344E | 250 | 312.5 | BF6M1015C | 132x145 | 6 | 3150x980x1530 | 2300 |
| ST385E | 280 | 350 | BF6M1015C | 132x145 | 6 | 3150x980x1530 | 2300 |
| ST413E | 300 | 375 | BF6M1015CP | 132x145 | 6 | 3220x1350x1800 | 2870 |
| ST440E | 320 | 400 | BF6M1015CP | 132x145 | 6 | 3300x1350x1800 | 2870 |
| ST481E | 350 | 437.5 | BF8M1015C | 132x145 | 8 | 3400x1250x1800 | 2870 |
| ST550E | 400 | 500 | BF8M1016C | 132x145 | 8 | 3550x1250x1800 | 3190 |
| Air-cooled DEUTZ Diesel Generator sets | |||||||
| ST14D | 14 | 17.5 | F2L912 | 100x120 | 2 | 1000x660x1110 | 320 |
| ST24D | 24 | 30 | F3L912 | 100x120 | 3 | 1500x720x1220 | 395 |
| ST30D | 30 | 37.5 | F4L912 | 100x120 | 4 | 1630x720x1220 | 460 |
| ST32D | 32 | 40 | F4L913 | 100x120 | 4 | 1630x720x1220 | 760 |
| ST40D | 40 | 50 | F4L912T | 100x120 | 4 | 2000x720x1220 | 850 |
| ST48D | 48 | 60 | F6L912 | 100x120 | 6 | 2000x720x1220 | 980 |
| ST48D | 48 | 60 | F6L913 | 102x125 | 6 | 2000x720x1220 | 1100 |
| ST58D | 58 | 72.5 | F6L912T | 100x120 | 6 | 2000x720x1220 | 1120 |
| ST80D | 80 | 100 | F6L913 | 102x125 | 6 | 2000x720x1220 | 1150 |
| ST110D | 110 | 137.5 | BF6L913C | 102x125 | 6 | 2000x720x1220 | 1180 |
| ST165D | 120 | 150 | BF8L513 | 125x130 | 8 | 2800x1260x1400 | 1400 |
| ST206D | 150 | 187 | BF8L513C | 125x130 | 8 | 3000x1400x1500 | 1500 |

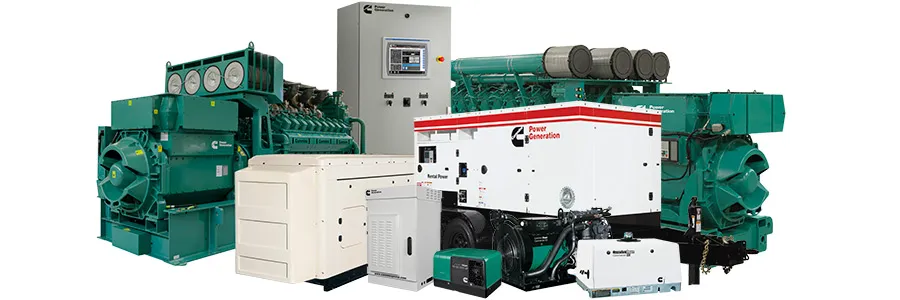

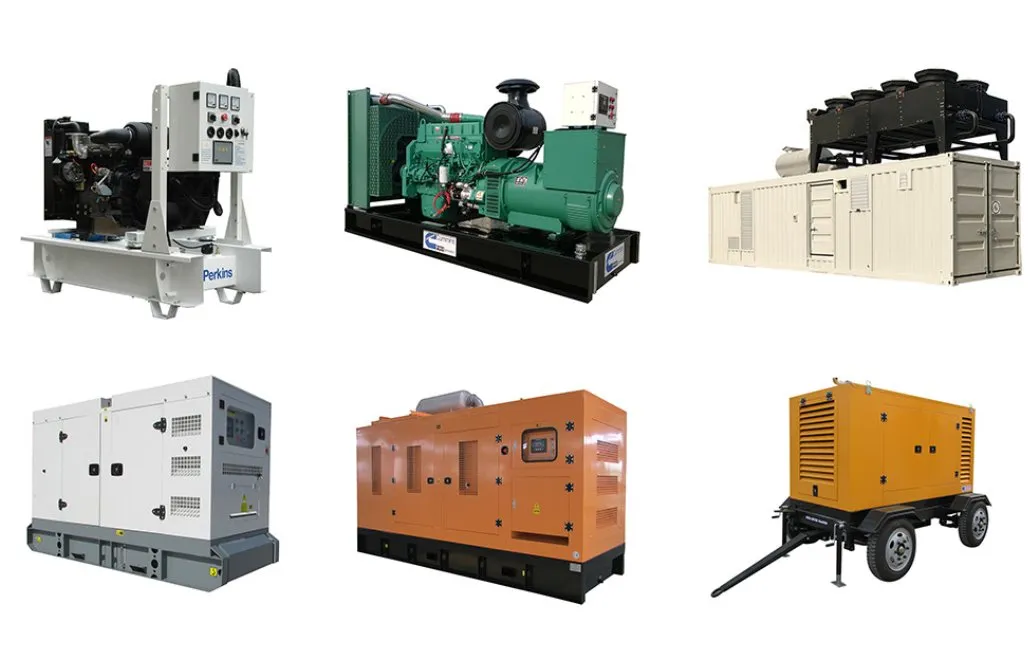

OTHER OPTIONS
| Main Engine Brand Introduction | ||||||
| Generator Brand | Generator Power(KW) | Generator Power(Kva) | Consumption Diesel(l/hr) | Voltage(V) | Frequency(HZ) | Speed(RPM) |
| Cummins Series | 16-1560 | 20-1950 | 5.7-339.9 | 230/400 | 50/60 | 1500/1800 |
| Pks Series | 8-2000 | 10-2250 | 3-529 | 230/400 | 50/60 | 1500/1800 |
| Volvo Series | 68-544 | 85-680 | 16-133 | 230/400 | 50/60 | 1500/1800 |
| MTU serirs | 520-2600 | 650-3250 | 126.5-623.8 | 230/400 | 50/60 | 1500/1800 |
| Mitsubishi Series | 480-2000 | 600-2500 | 125-525 | 230/400 | 50/60 | 1500/1800 |
| Yangdong series | 7.2-48 | 9-65 | <240 | 230/400 | 50/60 | 1500/1800 |
| SDEC series | 48-800 | 60-1000 | 195-225 | 230/400 | 50/60 | 1500/1800 |
| Other series ( Container type / Marine series etc. ) | ||||||
1)Cummins series diesel generator

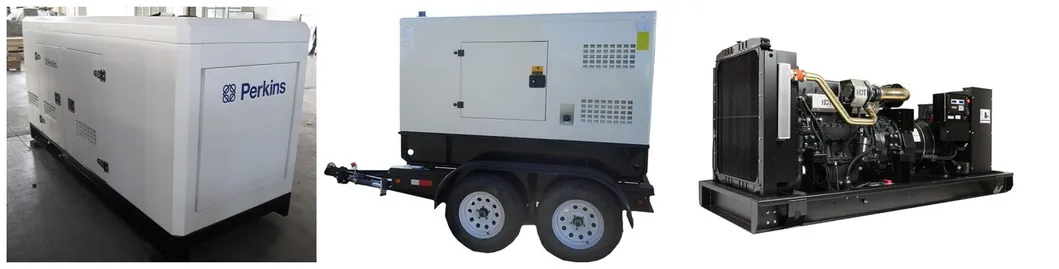

2) Pks series diesl generotor

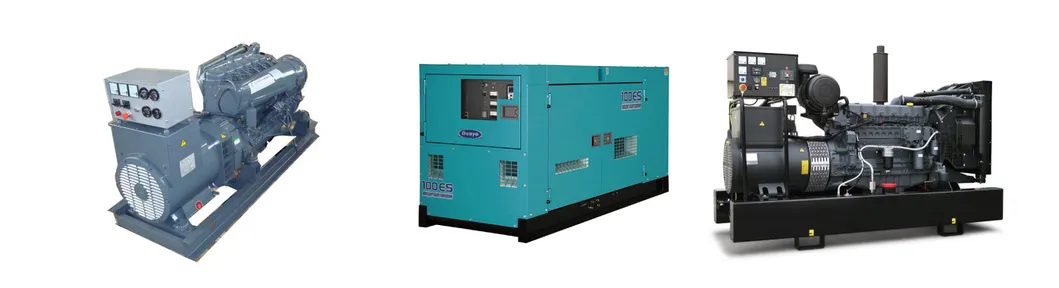

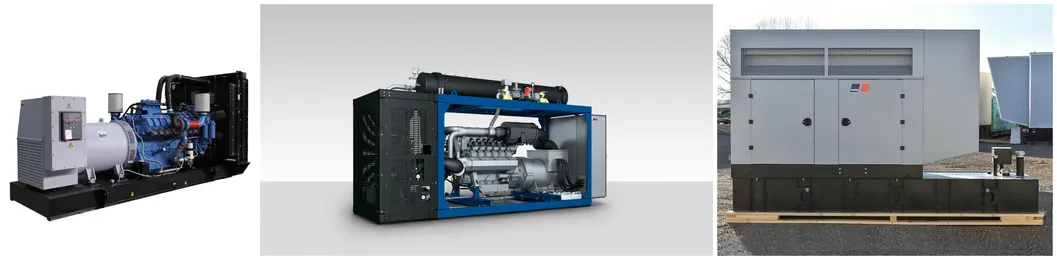

3) MTU series diesel generator
PACKING & DELIVERY
CERTIFICATE
WHAT WE CAN PROVIDE
• Brand accessories, quality assurance
Super-above provides you with the original brand engine,alternator and other spare parts, the quality is more reliable.
• Best solutions
Super-above will provide you best solutions for spare parts,because we have most experienced technical team and after-sale service team.
Quickly intuitive query by 2D/3D makes sure requested spare parts more accurate.
• 24-hour Service
We understand your needs and difficulties. Hence Super-above after-sales team opened 24-hour service hotline to help you solve any problems.
• The most efficient transport
Super-above maintains good cooperation with DHL, TNT etc.international express company. In case of urgent express,
Super-above promises sending out within 48 hours, in the shortest time to reach your side.No matter when and where, no matter what you need,
Super-above will provide you with the highest quality accessories.
WHAT ELSE WE HAVE
Super-above offer emergency power support for all kinds of outdoor engineering work,such as building road,
construction sites, industrial, mining, television filming, leasing,rescuing and so on.
