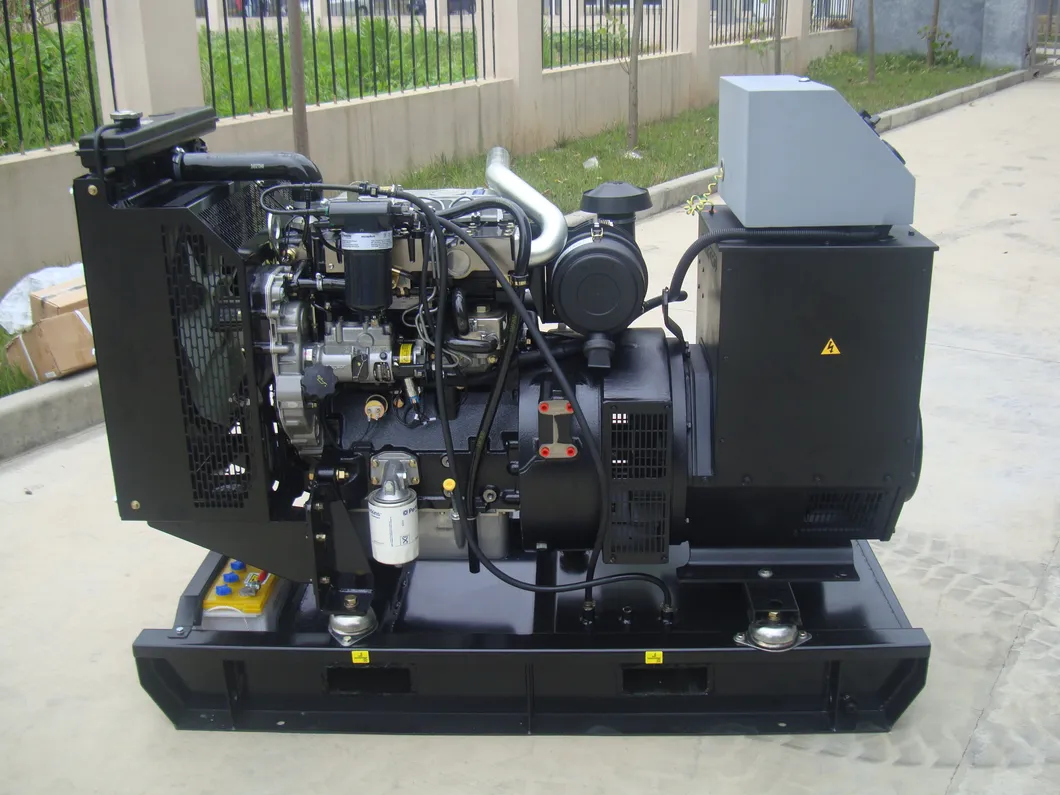

50Hz Diesel Generator Set R-P Series R-P495-S 495kVA / 396kw Open Sets
50HZ Diesel Generator Set R-P Series R-P495-S 495kVA / 396kW Open SetsA diesel generator is the combination of a diesel engine with an electric generator to generate electrical energy. This is a specific case of engine-generator. A diesel compression-ignition engine is usually designed to run on die......
Send Inquiry
Product Description
50HZ Diesel Generator Set R-P Series R-P495-S 495kVA / 396kW Open Sets
A diesel generator is the combination of a diesel engine with an electric generator to generate electrical energy. This is a specific case of engine-generator. A diesel compression-ignition engine is usually designed to run on diesel fuel, but some types are adapted for other liquid fuels or natural gas.
Features
Contacts
If you have any questions, please feel free to contact me.
All the information and pictures above are subject to change without further notice.
All rights reserved@ CESE2
A diesel generator is the combination of a diesel engine with an electric generator to generate electrical energy. This is a specific case of engine-generator. A diesel compression-ignition engine is usually designed to run on diesel fuel, but some types are adapted for other liquid fuels or natural gas.
Features
- Strong power, high torque, easy to maintain, easy to start;
- Low noise, low emissions;
- Cabinet made of high quality sheet metal, corrosion-resistant, scratch-resistant;
- Canopy sealing performance, high waterproof, dust-proof, rain, dust and other difficult to access;
- Omni-directional control, easy connection and simple;
- Cranes, fork, pull, drag, easy transportation;
- ≥8-hour fuel tanks;
- Open Type with 40 c radiator, Soundproof type with 50 ºCradiator
| No. of Cylinders / Alignment | 6 / In Line | Gross Engine Power(kW) | Prime | 412 |
| Cycle | 4 Stroke | Standby | 451 | |
| Bore / Stroke | 137 mm / 171 mm | Compression Ratio | 16:1 | |
| Induction | TC | Displacement (L) | 15 | |
| Cooling Method | Water | Governing Type | Electronic | |
| Lubricant Oil | 15W40-CF4 Upgrade | Net weight (kg) | 1633 | |
| Lubricant Oil Capacity(L) | 62 | Coolant Capacity(L) | 58 | |
| Rated Capacity(kVA) | 455 | A.V.R. Model | AS440 |
| Rated Power(kW) | 364 | Voltage Regulation (no load- full load) | ± 1.0% |
| THF(BS EN60034 - 1) | <2% | Underspeed Protection | Standard |
| Bearing Number | Single | Protection | IP23 |
| Windings | 100% Copper | Phase Sequence | A(U), B(V), C(W) |
| Silicon Steel Core Processing | One Piece Punching | TIF(NEMA MG 1-22) | <50 |
| Insulation Class | H | Excitation System | Self-excited, SHUNT |
| Winding Pitch | 2 / 3 | Ambient Temp | 50 ºC |
| Amortisseur Winding | Full | Stator Rated Temp | 125 ºC |
