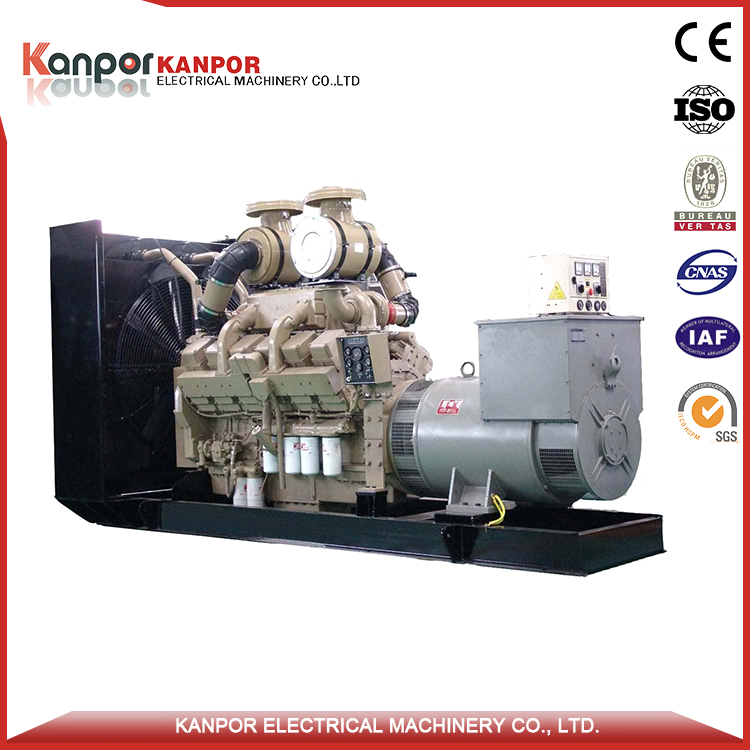

Cummins 260kw to 360kw Standby Diesel Generator Made in China
1. GENERATOR DATA Voltage Available: 50Hz: 380-400-415V/220-230-240V;60Hz: 220-380-416-440-480V/110-208-220-240VAny special voltage is also available as client's requestPrime Power: Comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power......
Send Inquiry
Product Description
1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Genset Model | KPC350 | KPC385 | KPC412 | KPC440 | KPC500 | |
| Rated Power | KW/KVA | 260/325 | 280/350 | 304/380 | 320/400 | 360/450 |
| Standby Power | KW/KVA | 280/350 | 308/385 | 330/412 | 352/440 | 400/500 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | ||||
| Speed | RPM | 1500/1800 | ||||
| Rated frequency | Hz | 50/60 | ||||
| Engine Model | NTA855-G1B | NTA855-G2A | NTAA855-G7 | NTAA855-G7A | KTA19-G3 | |
| Engine Power | KW | 321 | 343 | 377 | 407 | 448 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 6 | 6 | 6 | 6 | 6 |
| Bore*Stroke | mm*mm | 140×152 | 140×152 | 140×152 | 140×152 | 159×159 |
| Displacement | L | 14 | 14 | 14 | 14 | 18.9 |
| Fuel Consumption | g/kw.h | 209 | 192.6 | 206.7 | 200.5 | 203 |
| Compression Ratio | 14:01 | 14:01 | 14:01 | 14:01 | 13.9:1 | |
| Alternator Model | STF-314ES | STF-314E | STF-314FS | STF-314F | STF-354C | |
| Voltage Regulation | AVR | |||||
| Excitation Method | Brushless | |||||
| Open Type Size | mm | 3350x1120x1600 | 3350x1120x1600 | 3350x1120x1600 | 3350x1120x1600 | 3370x1220x1900 |
| Open Type Weight | kg | 2660 | 2750 | 3080 | 3130 | 3250 |
| Soundproof Size | mm | 3800x1200x2100 | 3800x1200x2100 | 3800x1200x2100 | 3800x1500x2100 | 4300x1500x2400 |
| Soundproof Weight | kg | 3680 | 3890 | 4200 | 4300 | 4600 |
3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
