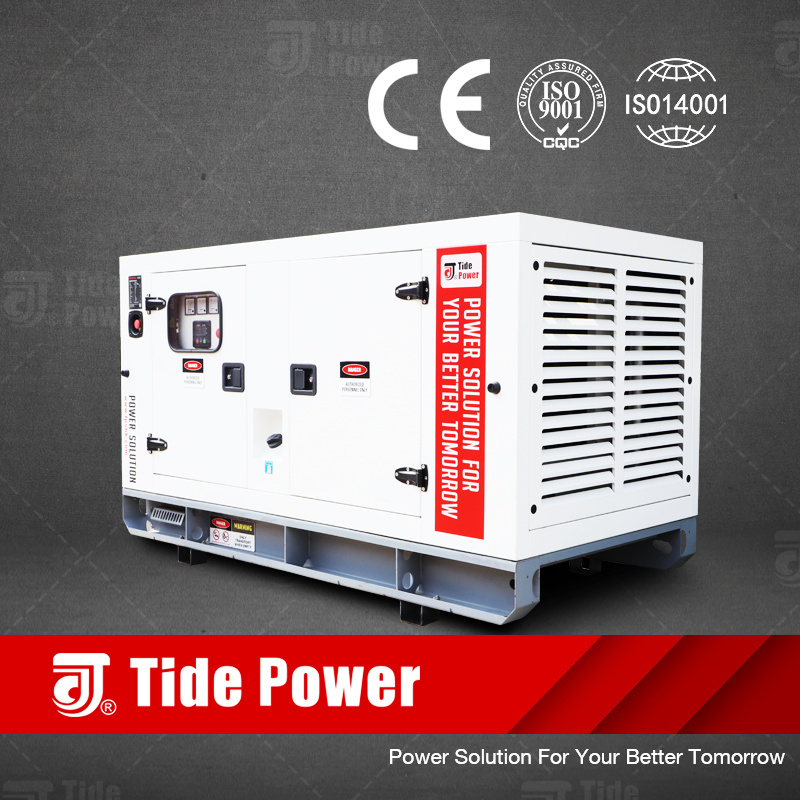

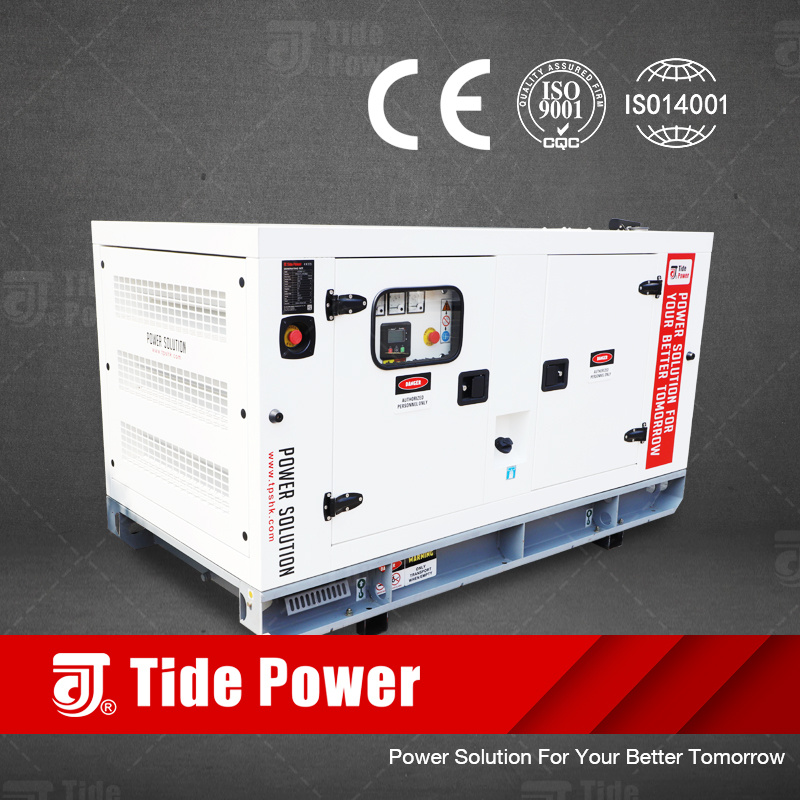

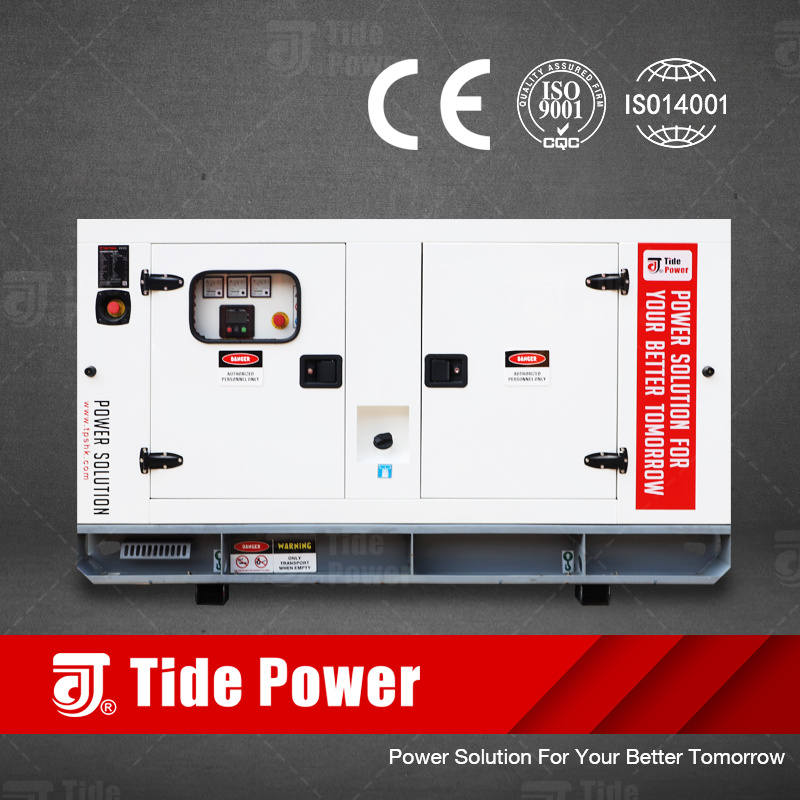

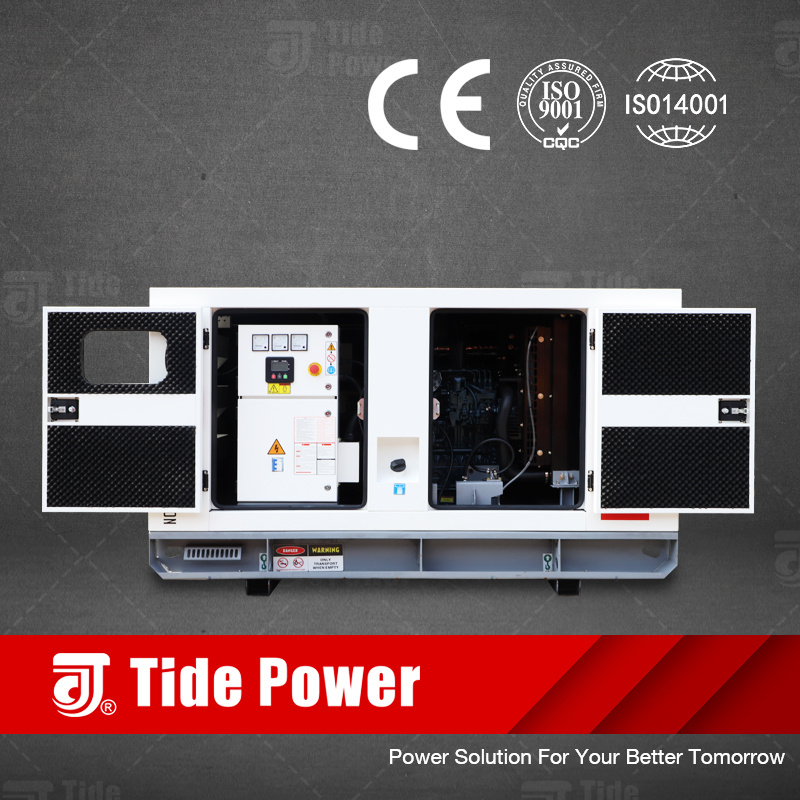

Fast Delivery 30kVA 50kVA 80kVA 100kVA Silent Type Good Quality Ce Approved Diesel Engine Generator Price
PERKINS ENGINE WITH STAMFORD ALTERNATOR1500RPM ,50HZ, 380V,3PH , P.F.0.8GensetModelPrime PowerStandby PowerEngineModelAlternator ModelControl SystemATSRemarkKWKVAKWKVACurrent-AEC9-P79810403D-11G-50HZPI044EEC 2.063A EC9-P79810403A-11G1PI044EEC 2.063A EC13-P10131114403D-15GPI044FEC 2.063A EC13-P101......
Send Inquiry
Product Description
| PERKINS ENGINE WITH STAMFORD ALTERNATOR | |||||||||
| 1500RPM ,50HZ, 380V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| EC9-P | 7 | 9 | 8 | 10 | 403D-11G-50HZ | PI044E | EC 2.0 | 63A | |
| EC9-P | 7 | 9 | 8 | 10 | 403A-11G1 | PI044E | EC 2.0 | 63A | |
| EC13-P | 10 | 13 | 11 | 14 | 403D-15G | PI044F | EC 2.0 | 63A | |
| EC13-P | 10 | 13 | 11 | 14 | 403A-15G1 | PI044F | EC 2.0 | 63A | |
| EC15-P | 12 | 15 | 13 | 16 | 403A-15G2 | PI044G | EC 2.0 | 63A | |
| EC20-P | 16 | 20 | 18 | 22 | 404D-22G-50HZ | PI144D | EC 2.0 | 63A | |
| EC20-P | 16 | 20 | 18 | 22 | 404A-22G1 | PI144D | EC 2.0 | 63A | |
| EC65-P | 52 | 65 | 57 | 72 | 1104A-44TG1 | UCI224F | EC 2.0 | 160A | |
| EC80-P | 64 | 80 | 70 | 88 | 1104A-44TG2 | UCI224G | EC 2.0 | 160A | |
| EC100-P | 80 | 100 | 88 | 110 | 1104C-44TAG2 | UCI274C | EC 2.0 | 250A | |
| EC135-P | 108 | 135 | 120 | 150 | 1106A-70TG1 | UCI274E | EC 3.0 | 250A | |
| EC150-P | 120 | 150 | 132 | 165 | 1106A-70TAG2 | UCI274F | EC 3.0 | 400A | |
| EC180-P | 144 | 180 | 160 | 200 | 1106A-70TAG3 | UCI274G | EC 3.0 | 400A | |
| EC200-P | 160 | 200 | 176 | 220 | 1106A-70TAG4 | UCI274H | EC 3.0 | 400A | |
| Engine come from UK/USA | |||||||||
| EC9-P | 7 | 9 | 8 | 10 | 403D-11G | PI044E | EC 2.0 | 63A | |
| EC9-P | 7 | 9 | 8 | 10 | 403A-11G1 | PI044E | EC 2.0 | 63A | |
| EC13-P | 10 | 13 | 11 | 14 | 403D-15G | PI044F | EC 2.0 | 63A | |
| EC13-P | 10 | 13 | 11 | 14 | 403A-15G1 | PI044F | EC 2.0 | 63A | |
| EC15-P | 12 | 15 | 13 | 16 | 403A-15G2 | PI044G | EC 2.0 | 63A | |
| EC20-P | 16 | 20 | 18 | 22 | 404D-22G | PI144D | EC 2.0 | 63A | |
| EC20-P | 16 | 20 | 18 | 22 | 404A-22G1 | PI144D | EC 2.0 | 63A | |
| EC30-P | 24 | 30 | 26 | 33 | 1103A-33G | PI144G | EC 2.0 | 63A | |
| EC45-P | 36 | 45 | 40 | 50 | 1103A-33TG1 | UCI224D | EC 2.0 | 80A | |
| EC60-P | 48 | 60 | 53 | 66 | 1103A-33TG2 | UCI224E | EC 2.0 | 160A | |
| EC65-P | 52 | 65 | 57 | 72 | 1104A-44TG1 | UCI224F | EC 2.0 | 160A | |
| EC80-P | 64 | 80 | 70 | 88 | 1104A-44TG2 | UCI224G | EC 2.0 | 160A | |
| EC100-P | 80 | 100 | 88 | 110 | 1104C-44TAG2 | UCI274C | EC 2.0 | 250A | |
| EC135-P | 108 | 135 | 120 | 150 | 1106A-70TG1 | UCI274E | EC 3.0 | 250A | |
| EC150-P | 120 | 150 | 132 | 165 | 1106A-70TAG2 | UCI274F | EC 3.0 | 400A | |
| EC180-P | 144 | 180 | 160 | 200 | 1106A-70TAG3 | UCI274G | EC 3.0 | 400A | |
| EC200-P | 160 | 200 | 176 | 220 | 1106A-70TAG4 | UCI274H | EC 3.0 | 400A | |
| EC200-P3 | 160 | 200 | 176 | 220 | 1206A-E70TTAG1 | UCI274H | EC 4.0 | 400A | |
| EC230-P2 | 184 | 230 | 200 | 250 | 1206A-E70TTAG2 | UCDI274J | EC 4.0 | 400A | |
| EC250-P2 | 200 | 250 | 220 | 275 | 1206A-E70TTAG3 | UCDI274K | EC 4.0 | 630A | |
| EC200-P4 | 160 | 200 | 176 | 220 | 1206D-E70TTAG1 | UCI274H | EC 4.0 | 400A | |
| EC230-P3 | 184 | 230 | 200 | 250 | 1206D-E70TTAG2 | UCDI274J | EC 4.0 | 400A | |
| EC250-P3 | 200 | 250 | 220 | 275 | 1206D-E70TTAG3 | UCDI274K | EC 4.0 | 630A | |
| EC200-P | 160 | 200 | 176 | 220 | 1506A-E88TAG1 | UCI274H | EC 4.0 | 400A | |
| EC230-P | 184 | 230 | 200 | 250 | 1506A-E88TAG2 | UCDI274J | EC 4.0 | 400A | |
| EC250-P | 200 | 250 | 220 | 275 | 1506A-E88TAG3 | UCDI274K | EC 4.0 | 630A | |
| EC275-P | 220 | 275 | 240 | 300 | 1506A-E88TAG4 | HCI444D | EC 4.0 | 630A | |
| EC300-P1 | 240 | 300 | 264 | 330 | 1506A-E88TAG5 | HCI444D | EC 4.0 | 630A | |
| EC300-P2 | 240 | 300 | 264 | 330 | 1706A-E93TAG1 | HCI444D | EC 4.0 | 630A | |
| EC350-P1 | 280 | 350 | 320 | 400 | 1706A-E93TAG2 | HCI444E | EC 4.0 | 630A | |
| EC350-P2 | 280 | 350 | 320 | 400 | 2206C-E13TAG2 | HCI444E | EC 4.0 | 630A | |
| EC400-P | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | HCI444F | EC 4.0 | 800A | |
| EC450-P | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | HCI544C | EC 4.0 | 800A | |
| EC500-P | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | HCI544D | EC 4.0 | 1000A | |
| EC600-P | 480 | 600 | 528 | 660 | 2806C-E18TAG1A | HCI544E | EC 4.0 | 1250A | |
| EC650-P | 520 | 650 | 560 | 700 | 2806A-E18TAG2 | HCI544F | EC 4.0 | 1250A | |
| Engine come from India | |||||||||
| EC30-P | 24 | 30 | 26 | 33 | 1103A-33G | PI144G | EC 2.0 | 63A | |
| EC45-P | 36 | 45 | 40 | 50 | 1103A-33TG1 | UCI224D | EC 2.0 | 80A | |
| EC60-P | 48 | 60 | 53 | 66 | 1103A-33TG2 | UCI224E | EC 2.0 | 160A | |
Remark:the above specifications are only for your review . Please contact us for more details if you are interested.
