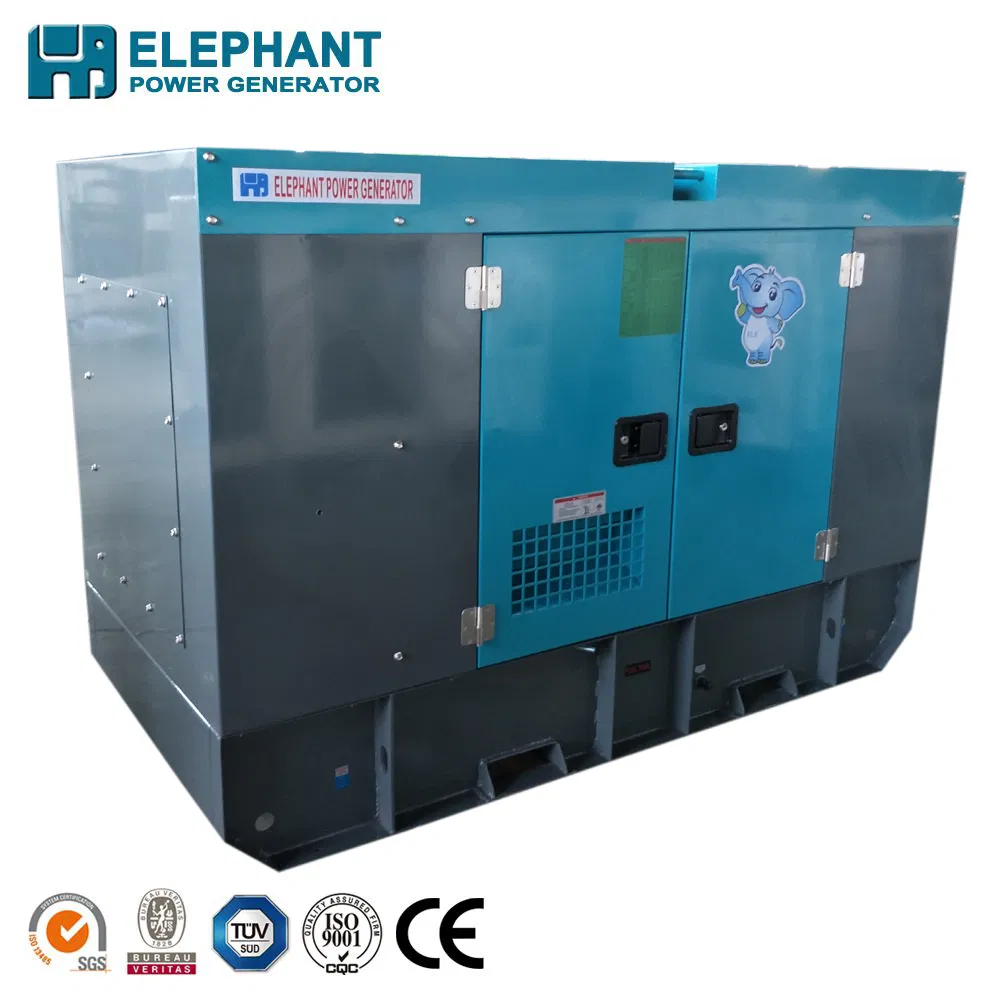

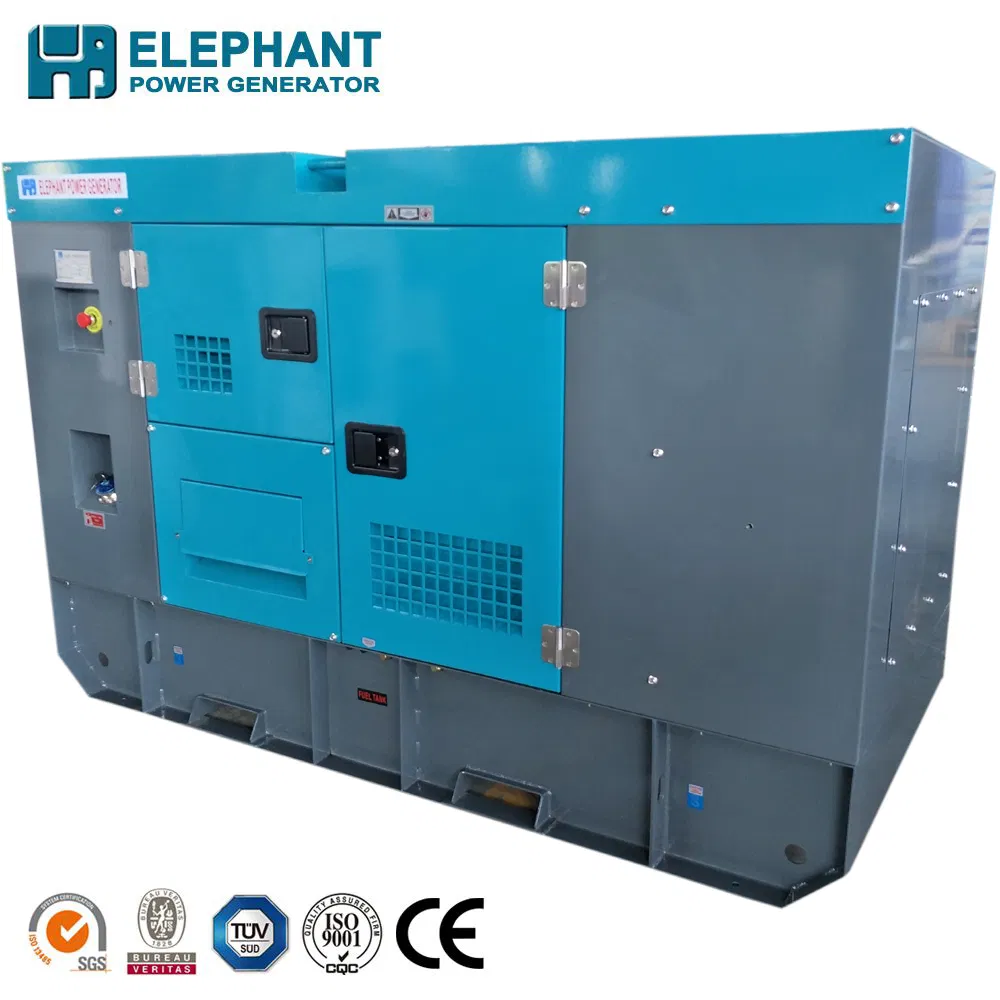

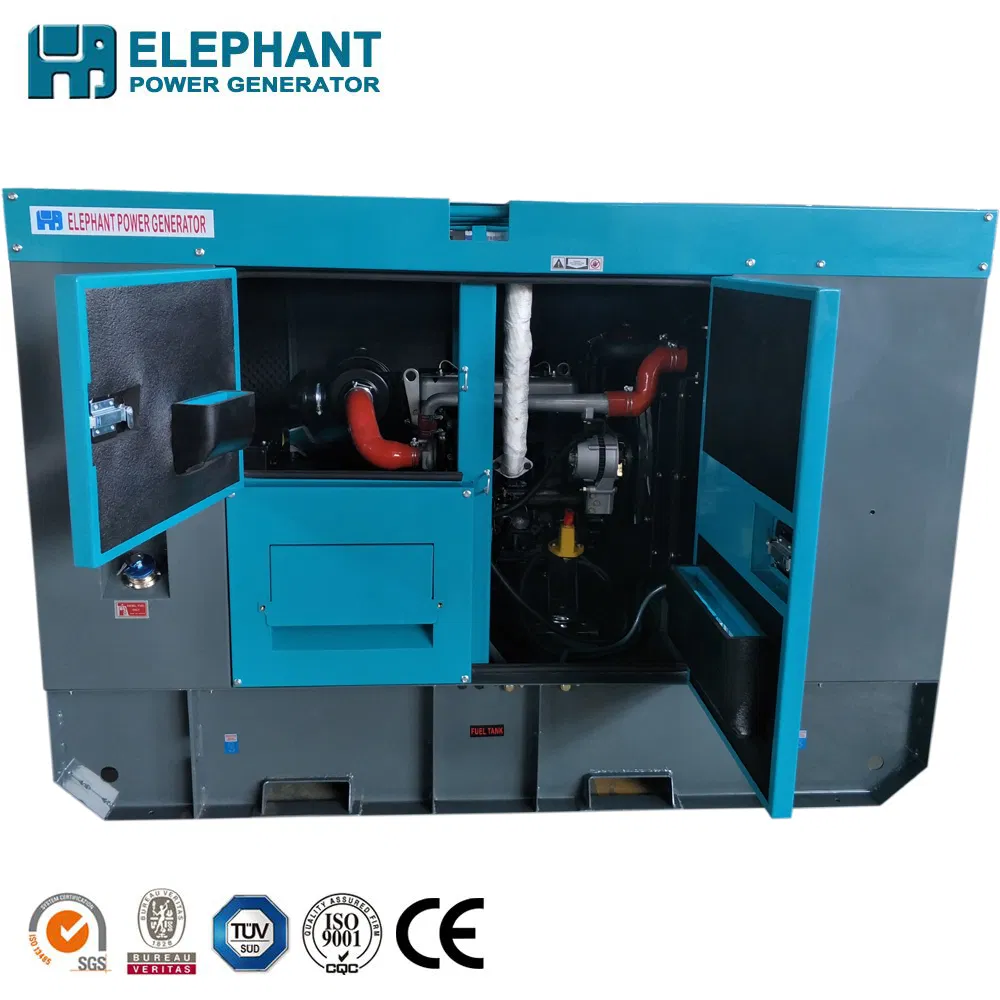

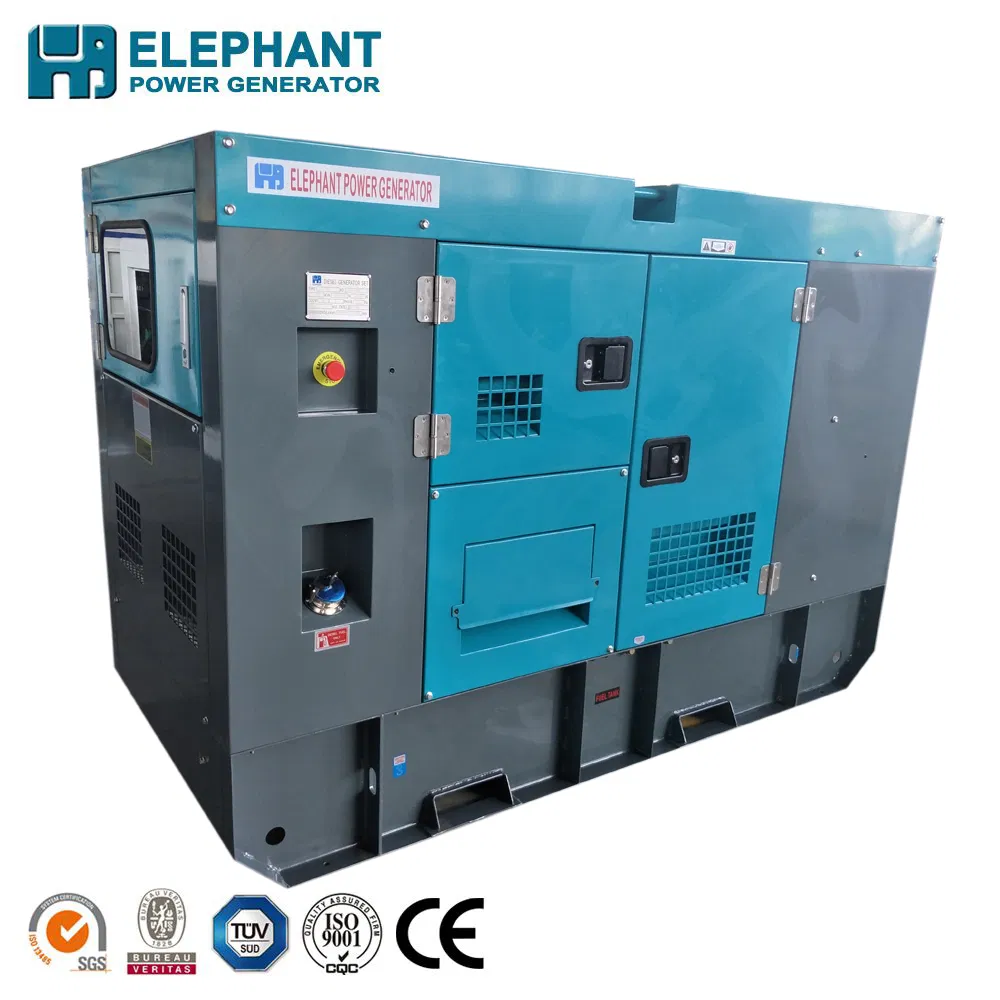

Power by Quanchai Electric Start 50Hz Silent Type Diesel Generator Set
Power By Quanchai Electric Start 50hz Silent Type Diesel Generator SetProduct DescriptionProduct ParametersProduct Overview 1) Brand-new engine,w/start motor. 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.3) Auto control panel with LCD display. 4) Engine m......
Send Inquiry
Product Description
Power By Quanchai Electric Start 50hz Silent Type Diesel Generator Set
Product Description
Product Parameters
Packing & Shipping
Company Information
Product Description
Product Parameters
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 60Kva Quanchai diesel generator | |
| Genset Specification | |
| Genset Model | BQ-60 |
| Prime Power(Kw/Kva) | 48/60 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | QC4112D |
| Alternator Model | STG224E |
| Open type DimensionL*W*H(mm) | 2100*850*1100 |
| Weight(Kg) | 1100 |
| Silent type DimensionL*W*H(mm) | 2300*1100*1300 |
| Weight(Kg) | 1200 |
| Engine Detail | |
| Manufacturer | Quanchai engine Co.,Ltd |
| Model | QC4112D |
| Engine speed | 1500rpm |
| Engine power | |
| ......Prime power | 55KW(50Hz) |
| Type | vertical,4 cylinder,in-line,water-cooled,four-stroke |
| Aspiration | Naturally aspirated / Turbocharged |
| Governor | electrical |
| Bore*Stroke | 112*135mm |
| Alternator Detail | |
| Model | STG224E |
| Output power(Kw/Kva) | 50/63 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
